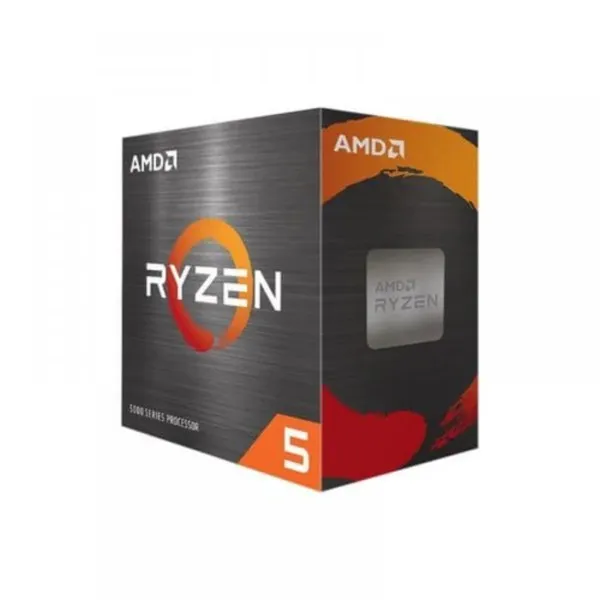

Name: AMD Ryzen 5 5600F AM4 6 Cores 12 Threads Desktop Processor
SKU: 16798
Availability: InStock

AMD Ryzen 5 5600F AM4 6 Cores 12 Threads Desktop Processor

Rated 0 out of 5

0 Reviews

In stock

(-76%)

Product details

Specification	Details
Model	AMD Ryzen™ 5 5600F
Family	Ryzen
Series	Ryzen 5000 Series
Form Factor	Desktops, Boxed Processor
Market Segment	Mainstream Desktop
Regional Availability	APJ
Former Codename	Vermeer
Processor Architecture	Zen 3
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 4 GHz
Base Clock	3 GHz
L1 Cache	384 KB
L2 Cache	3 MB
L3 Cache	32 MB
Default TDP	65W
Processor Technology for CPU Cores	TSMC 7nm FinFET
Processor Technology for I/O Die	12nm (Globalfoundries)
CPU Compute Die (CCD) Size	74mm²
I/O Die (IOD) Size	125mm²
Package Die Count	2
Unlocked for Overclocking	Yes
CPU Socket	AM4
Supporting Chipsets	X570 , X470 , X370 , B550 , B450 , B350 , A520
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
Max. Operating Temperature (Tjmax)	95°C
*OS Support	Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps)	4
Native USB 3.2 Gen 1 (5Gbps)	0
Native USB 2.0 (480Mbps)	0
Native SATA Ports	2
PCI Express® Version	PCIe® 4.0
Native PCIe® Lanes (Total/Usable)	24,20
NVMe Support	Boot , RAID0 , RAID1 , RAID10
System Memory Type	DDR4
Memory Channels	2
Max. Memory	128 GB
System Memory Subtype	UDIMM
System Memory Specification	Up to 3200 MT/s
Max Memory Speed	2x1R DDR4-3200 2x2R DDR4-3200 4x1R DDR4-2933 4x2R DDR4-2667
ECC Support	Yes (Requires mobo support)
Graphics Model	Discrete Graphics Card Required
