Product details
| Unique Features | Superb Productivity: Dual Channel DDR5, Rock-Solid Durability: 4+1+1 Power Phase with Dr.MOS for Vcore, EZ Update: BIOS Flashback Button, ASRock Auto Driver Installer, EZ Troubleshooter: ASRock Post Status Checker |
| CPU Support | AMD Socket AM5 Ryzen 9000, 8000, 7000 Series Processors |
| Chipset | AMD A620A |
| Memory Support | Dual Channel DDR5, 2 × DDR5 DIMM slots, non-ECC un-buffered, up to 6800+ MT/s (OC), Max 128GB, Supports XMP and EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics Output | Integrated AMD RDNA graphics (CPU-dependent), 1 × HDMI 2.1 (4K @ 120Hz), 1 × D-Sub (1920×1080 @ 60Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC897) |
| LAN | Gigabit LAN (Realtek RTL8111H), Bandwidth Control, User Interface, Network Stats, Priority Modes |
| Expansion Slots | CPU: 1 × PCIe 4.0 x16, Chipset: 2 × PCIe 3.0 x1, 1 × M.2 Key E (2230 Wi-Fi/BT), 15μ Gold VGA PCIe Slot |
| Storage Interface | CPU: 1 × Gen4x4 M.2 (2280), Chipset: 1 × Gen3x4 & SATA3 M.2 (2260/2280), 2 × SATA3 6Gb/s |
| RAID Support | SATA RAID 0, 1, NVMe RAID 0, 1, 10 (RAID 10 requires expansion card) |
| USB Ports | CPU: 3 × USB 3.2 Gen1 Type-A (Rear), Chipset: 1 × USB 3.2 Gen1 Type-C (Front), 3 × USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 8 × USB 2.0 (4 Rear, 4 Front) |
| Internal Connectors | Power LED & Speaker, 1 × RGB Header, 3 × ARGB Headers, 1 × CPU Fan (4-pin), 3 × CHA/WP Fans (4-pin), 1 × 24-pin ATX, 1 × 8-pin 12V, Front Audio, 2 × USB 2.0 Headers, 1 × USB 3.2 Gen1 Header, 1 × USB 3.2 Gen1 Type-C Header |

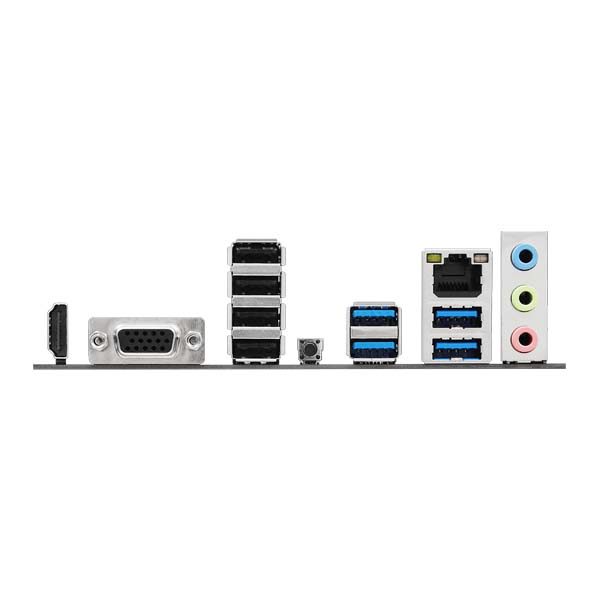

| Rear I/O Ports | 2 × Antenna Mount Points, 1 × D-Sub, 1 × HDMI, 4 × USB 3.2 Gen1 Type-A, 4 × USB 2.0, 1 × RJ-45 LAN, 1 × BIOS Flashback Button, HD Audio Jacks: Line-In, Front Speaker, Microphone |
| Software & UEFI | ASRock A-Tuning Utility, Polychrome SYNC, Full HD UEFI, Auto Driver Installer, Instant Flash |
| Accessories | 1 × I/O Shield, 2 × SATA Cables, 1 × M.2 Screw |
| Form Factor | Micro ATX, 9.6″ × 9.0″, 24.4 cm × 22.9 cm, 2oz Copper PCB |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready (requires compliant PSU) |
| Warranty | 3 Years |
| Note | Features, price, and specifications are subject to change without notice |
