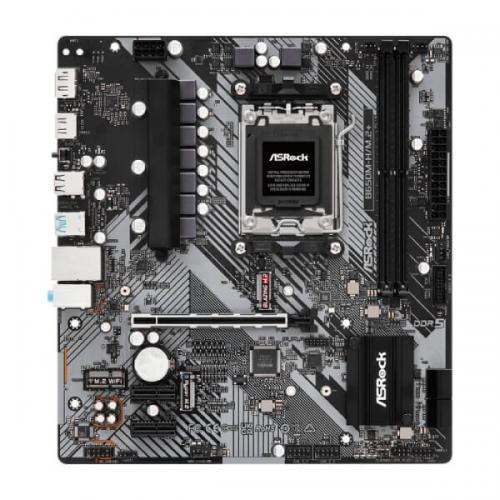

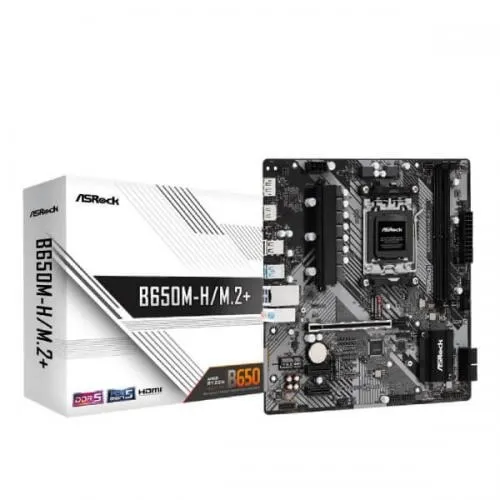

ASRock B650M-H/M.2+ Motherboard

• PCIe Gen5 (M.2)
• Dual Channel DDR5

Rock-Solid Durability

• 6+1+1 Power Phase, 50A Dr.MOS for VCore

EZ Update

• BIOS Flashback Button
• ASRock Auto Driver Installer EZ Troubleshooter

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
• Max. capacity of system memory: 128GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

• Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode

Chipset:

• 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Chipset:

• 4 x SATA3 6.0 Gb/s Connectors

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x CPU Fan Connector (4-pin)
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• 2 x Antenna Mounting Points

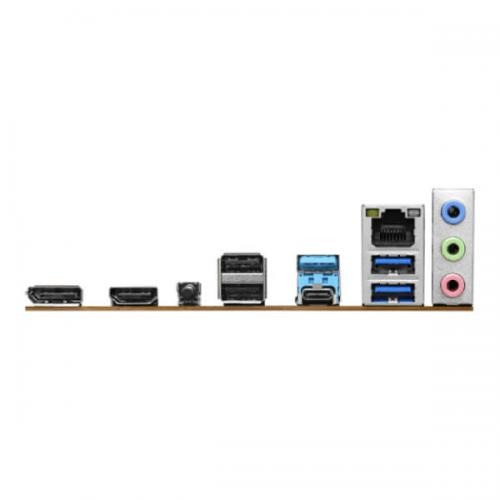

• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

• ASRock Motherboard Utility (A-Tuning)

UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 3 x Screws for M.2 Sockets

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
