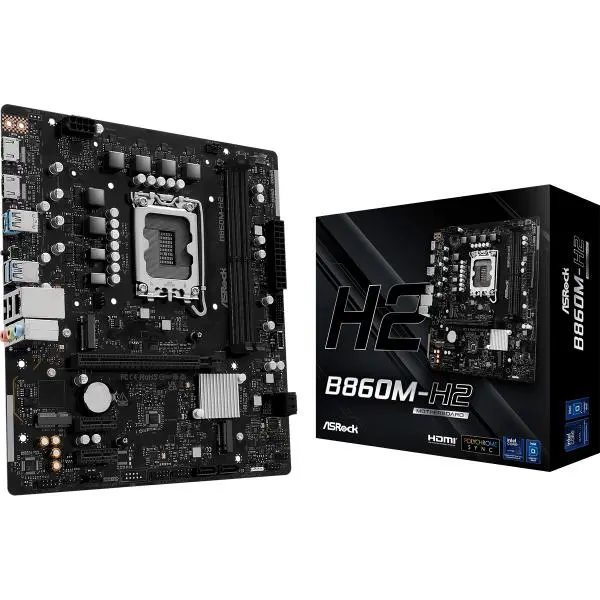

ASROCK B860M-H2 MOTHERBOARD
Original price was: ₹19,499.00.₹10,749.00Current price is: ₹10,749.00.
(-45%)- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Category | Details |
|---|---|
| Key Features | PCIe Gen5 M.2, Dual Channel DDR5, BIOS Flashback, ASRock Auto Driver Installer, Compact 4-Layer POOL Memory Design |
| Durability | 5+1+1+1+1 Power Phase |
| CPU Support | Intel® Core™ Ultra (LGA1851), Hybrid Tech, Turbo Boost Max 3.0, TVB, ABT, NPU |
| Chipset | Intel® B860 |
| Memory | 2× DDR5 DIMMs (Up to 8333+ MHz OC)*, Max 128GB, XMP 3.0, ECC & unbuffered support |
| Graphics Output | 2× HDMI 2.1 Ports (4K@120Hz), Intel Xe LPG Architecture |
| Audio | Realtek ALC897, 7.1 CH HD Audio |
| LAN | Gigabit LAN (Realtek 8111H, 10/100/1000 Mbps) |
| Wireless LAN | Optional (via M.2 Key E slot, Wi-Fi module not included) |
| Expansion Slots | – 1× PCIe 4.0 x16 (from CPU) – 2× PCIe 4.0 x1 (from Chipset) |
| M.2 & Storage | – 1× PCIe Gen5 x4 M.2 (CPU) – 1× PCIe Gen4 x4 M.2 (Chipset) – 4× SATA3 Supports RAID 0/1/5/10 |
| USB Ports | – Rear: 1× USB 3.2 Gen2x2 Type-C, 3× USB 3.2 Gen1, 2× USB 2.0 – Front: USB-C Gen1, 2× USB-A Gen1, 4× USB 2.0 |
| Cooling Support | – 1× CPU Fan (4-pin), 2× Chassis Fan (4-pin), 1× AIO Pump (Smart Fan Control) |
| Lighting Headers | – 1× 12V RGB Header – 3× 5V ARGB Headers (Supports up to 36W/15W total respectively) |
| Internal I/O | SPI TPM, Front Audio, USB 3.2 Gen1 Header, USB 3.2 Type-C Header, USB 2.0 Headers, Power LED & Speaker, ATX 24-pin, 8-pin 12V |

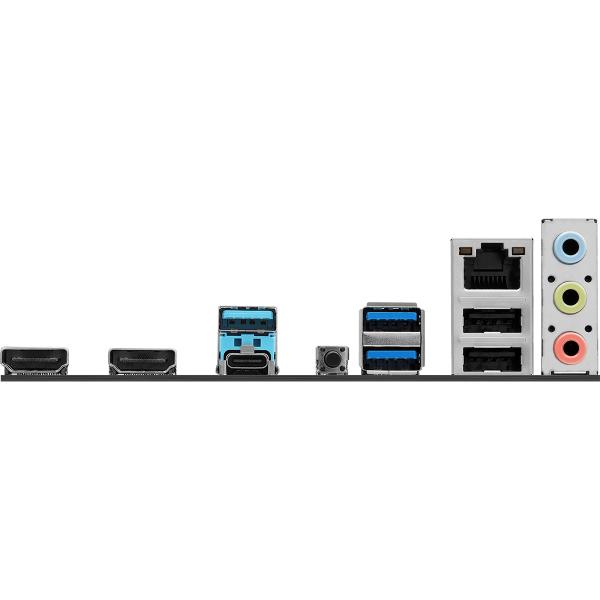

| Rear I/O Ports | 2× HDMI, 1× USB 3.2 Gen2x2 Type-C, 3× USB 3.2 Gen1, 2× USB 2.0, RJ-45, Antenna Mounts, BIOS Flashback, 3× Audio Jacks |
| BIOS & Software | UEFI GUI BIOS, EZ Mode, Instant Flash, Auto Driver Installer, A-Tuning, Polychrome SYNC |
| Accessories | I/O Shield, 2× SATA Cables, 1× M.2 Screw |
| Form Factor | Micro ATX (9.6″ × 8.3″, 24.4cm × 21.1cm) |
| OS Support | Microsoft Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
