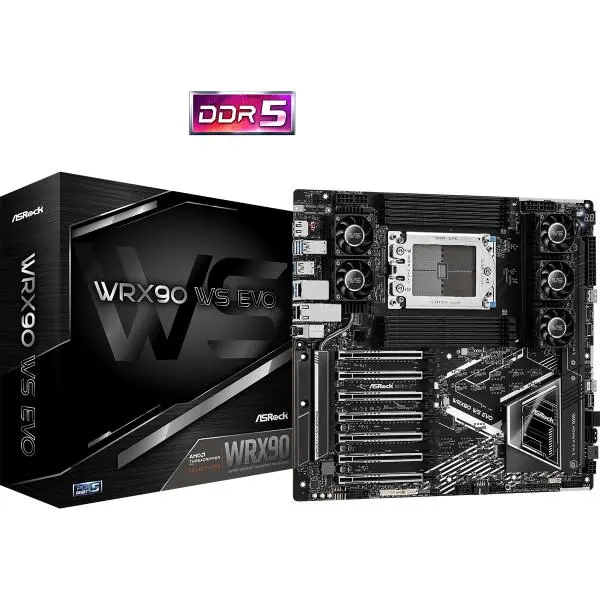

Product details
| Category | Details |
|---|---|
| Unique Features | – PCIe Gen5 for Graphics & M.2- USB4 Type-C (40Gb/s)- Eight Channel DDR5 Support- 18+3+3 Phase 110A SPS VCore Power- Dual Intel® 10G LAN |
| CPU Support | – AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series (Socket sTR5)- Hyper BCLK Engine- Adaptive Boost, TVB, NPU Support |
| Chipset | AMD WRX90 |
| Memory Support | – 8× DDR5 DIMMs (ECC Buffered RDIMM/3DS)- Up to 2TB, up to 7600+ MHz OC- Eight Channel Architecture- XMP support- Sleep mode supported with 1/2/4 DIMMs |
| Graphics | – Aspeed AST2600 BMC Controller- 1× DisplayPort 1.1a (1920×1200 @ 60Hz, no audio) |
| Audio | – 7.1 CH HD Audio (Realtek ALC1220)- Nahimic Audio- Separate PCB layers for L/R audio- Impedance Sensing, Gold Audio Jacks |
| LAN | – Dual Intel® X710-AT2 10G LAN (100M to 10G)- Realtek RTL8211F Dedicated IPMI LAN |
| Expansion Slots | – 7× PCIe 5.0 x16 (x16/x16/x16/x16/x16/x8/x16)- 15μ Gold Contacts in VGA PCIe Slots |
| Storage Options | – 1× Blazing M.2 (Gen5x4, 128Gb/s)- 1× Hyper M.2 (Gen4x4)- 2× MCIO (PCIe Gen5x4 or 4x SATA3)- 1× SlimSAS Gen4x4 + 4× SATA3- RAID 0/1/10 NVMe & SATA |
| USB Ports | – Rear: 2× USB4 Type-C (40Gb/s), 4× USB 3.2 Gen2, 2× USB 3.2 Gen1- Front: 1× USB 3.2 Gen2x2 Type-C, 2× USB 3.2 Gen1, 4× USB 2.0 |
| Cooling & Fan | – 1× CPU Fan (1A), 1× CPU/Water Pump (2A), 3× Chassis/Water Pump (2A)- Thermistor, Fan Auto Detection, Smart Fan Speed Control |
| Power Connectors | – 1× 24-pin ATX, 1× 3-pin ATX, 2× 8-pin ATX 12V (for board), 2× 6-pin PCIe 12V (for board), 2× 6-pin GFX 12V (for GPUs) |
| Internal I/O | – 2× SGPIO, IPMI, PSU/BMC SMBus, COM, Front VGA, NMI Button, Debug LED, Reset, Power, Clear CMOS, RGB + 2× ARGB Headers |

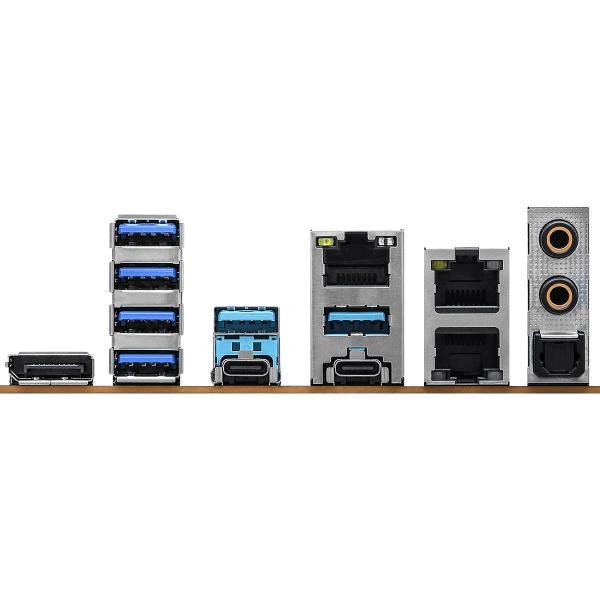

| Rear I/O Ports | – 1× DisplayPort 1.1a- 2× USB4 Type-C (PD up to 27W)- 4× USB 3.2 Gen2- 2× USB 3.2 Gen1- 2× 10G LAN- 1× IPMI LAN- SPDIF + Audio Jacks |
| Software & BIOS | – ASRock Polychrome Sync- Auto Driver Installer, Instant Flash- Full HD UEFI BIOS with GUI |
| Accessories | – 4× SATA Cables- 2× M.2 Screws + 2 Standoffs- 2× Thermistor Cables- Multi PSU Adaptor- I/O Shield, Manual |
| Form Factor | EEB (12.0″ × 13.0″ / 30.5 cm × 33.0 cm)- 14-layer PCB, 2oz Copper PCB |
| OS Support | Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP, CEC Tier II Ready |
