Product details
| Model | |
| Brand | ASRock |

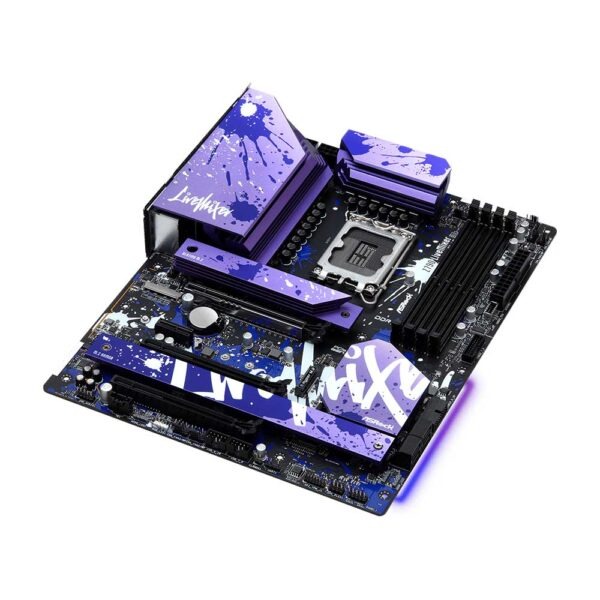

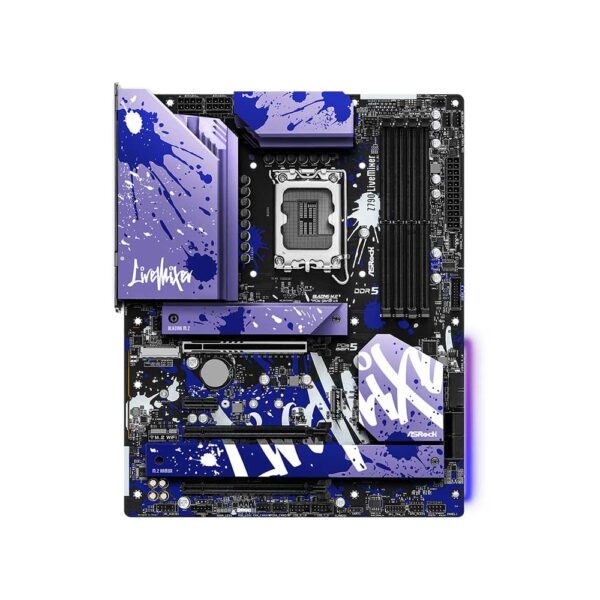

| Model | Z790 LiveMixer |
| Supported CPU | |
| CPU Socket Type | LGA 1700 |
| CPU Type | Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700). |
| Supports Intel Hybrid Technology | |
| Supports Intel Turbo Boost Max 3.0 Technology | |
| Supports Intel Thermal Velocity Boost (TVB) | |
| Supports Intel Adaptive Boost Technology (ABT) | |
| Chipsets | |
| Chipset | Intel Z790 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports DDR5 non-ECC, un-buffered memory up to 6800 (OC)* |
| 1DPC 1R Up to 6800 MHz (OC), 4800 MHz Natively. | |
| 1DPC 2R Up to 6000 MHz (OC), 4400 MHz Natively. | |
| 2DPC 1R Up to 5600 MHz (OC), 4000 MHz Natively. | |
| 2DPC 2R Up to 4800 MHz (OC), 3600 MHz Natively. | |
| Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| * Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/) | |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 5.0 x16 | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
| * If M2_1 is occupied, PCIE1 will downgrade to x8 mode. | |
| * Supports NVMe SSD as boot disks | |
| Supports AMD CrossFire | |
| PCI Express 4.0 x16 | 2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode* |
| PCI Express x1 | 1 x PCIe 3.0 x1 Slot (PCIE2) |
| Storage Devices | |
| SATA 6Gb/s | 4 x SATA3 6.0 Gb/s Connectors |
| M.2 | 5 x M.2 (Key M) 1 x M.2 (Key E) |
| CPU: | |
| 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Supports Intel Volume Management Device (VMD) | |
| * Supports NVMe SSD as boot disks | |
| * If M2_1 is occupied, PCIE1 will downgrade to x8 mode. | |
| * Either M2_1 or M2_2 can be used at a time. | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) | |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Onboard Audio | |
| Audio Chipset | Realtek ALC897 Audio Codec |
| Nahimic Audio | |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon RTL8125BG | |
| Supports Dragon 2.5G LAN Software | |
| Smart Auto Adjust Bandwidth Control | |
| Visual User Friendly UI | |
| Visual Network Usage Statistics | |
| Optimized Default Setting for Game, Browser, and Streaming Modes | |
| User Customized Priority Control | |
| Max LAN Speed | 2.5Gbps |
| Rear Panel Ports | |
| Back I/O Ports | 2 x Antenna Mounting Points |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x Optical SPDIF Out Port | |
| 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) | |
| 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s) | |
| 4 x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports. USB32_45 support Ultra USB Power.) | |
| 6 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x Line Out Jack (Gold Audio Jack) | |
| 1 x Microphone Input Jack (Gold Audio Jack) | |
| Internal I/O Connectors | |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| Other Connectors | 1 x eDP Signal Connector |
| 1 x SPI TPM Header | |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header* | |
| 3 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| 1 x Front Panel Audio Connector | |
| 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| * Supports in total up to 12V/3A, 36W LED Strip | |
| ** Support in total up to 5V/3A, 15W LED Strip | |
| *** CPU_FAN1 supports the fan power up to 1A (12W). | |
| **** CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| ***** CHA_FAN1~5/WP support the fan power up to 2A (24W). | |
| ***** CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| Windows Compatibility | |
| Windows 11 | Supported |
| Packaging | |

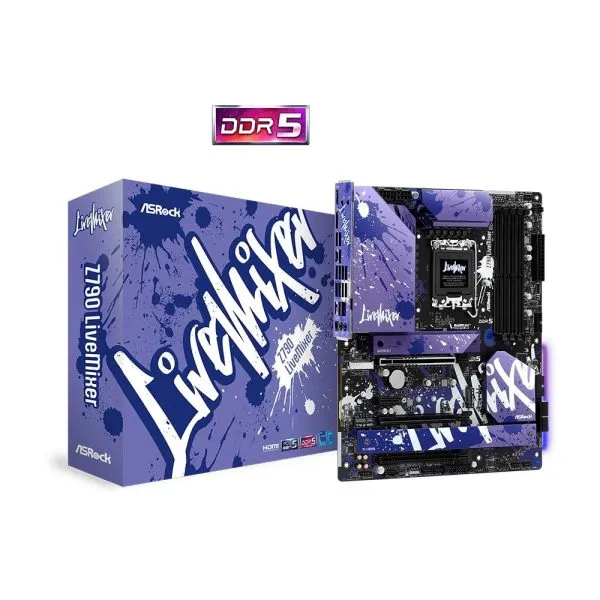

| Package Contents | Accessories |
| 1 x User Manual | |
| 2 x SATA Data Cables | |
| 5 x Screws for M.2 Sockets |
