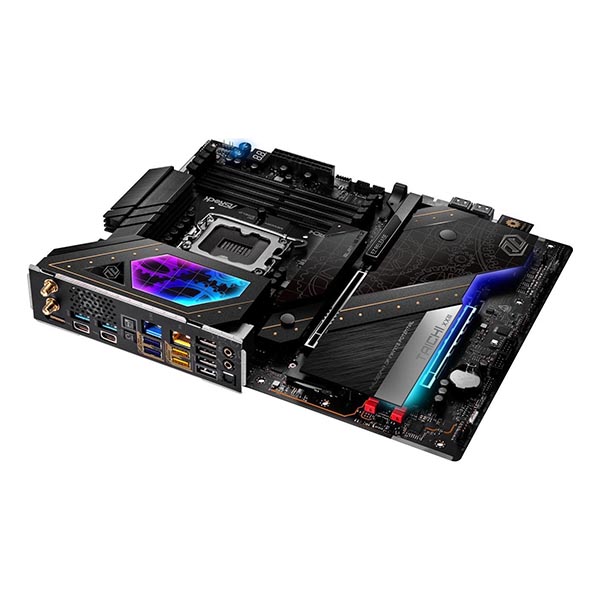

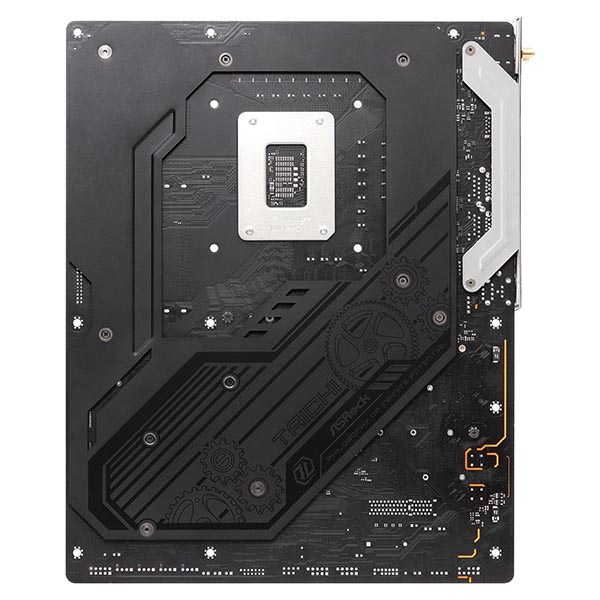

Name: ASRock Z890 Taichi LGA 1851 Intel Z890 SATA 6Gb/s ATX Motherboard
SKU: 17501
Availability: InStock

Product details

Brand	ASRock
Model	Z890 Taichi

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4400 / DDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9000 / DDR5 9066 / DDR5 9200 / DDR5 9600
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC) – 1DPC 1R Up to 9600+ MHz (OC), 5600 MHz Natively. – 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. – 2DPC 1R Up to 6800+ MHz (OC), 4800 MHz Natively. – 2DPC 2R Up to 5800+ MHz (OC), 4400 MHz Natively. Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0

Expansion Slots
PCI Express 5.0 x16	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
PCI Express 4.0 x16	Chipset: – 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode** PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots. * If PCIE2 is occupied, M2_4 will be disabled. * Supports NVMe SSD as boot disks

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* – 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* – 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode** Supports Intel Volume Management Device (VMD) * Supports NVMe SSD as boot disks * If PCIE2 is occupied, M2_4 will be disabled.
SATA RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Additional RAID Controller	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC4082
Audio Channels	5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) WIMA Audio Capacitors (For Rear Outputs) ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio

Rear Panel Ports
Back I/O Ports	2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out Port 2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)* 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) 4 x USB 3.2 Gen1 Ports 2 x USB 2.0 Ports 2 x RJ-45 LAN Ports 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Line Out Jack (Gold Audio Jack) 1 x Microphone Input Jack (Gold Audio Jack) * Supports USB PD 3.0 up to 5V@3A (15W) charging ** USB32_56 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Other Connectors	3 x Thermistor Cable Headers 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header* 3 x Addressable LED Headers 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). * CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W). * CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Software Feature
BIOS Feature	256Mb AMI UEFI Legal BIOS with GUI support
Software	Software – ASRock Motherboard Utility (A-Tuning) – ASRock Polychrome SYNC – ASRock Dragon 2.5G LAN Software * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0″ x 9.6″
Power Pin	1 x 24 pin ATX Power Connector (Hi-Density Power Connector) 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

Features
Features	Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt 4 Type-C Ports (40 Gb/s)Rock-Solid Durability – Server-Grade Low-Loss PCB – 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)Ultrafast Connectivity – 5G LAN, 2.5G LAN, 802.11be Wi-Fi 7 Module – ASRock Lightning Gaming PortsEZ Update – BIOS Flashback Button – ASRock Auto Driver Installer

Packaging

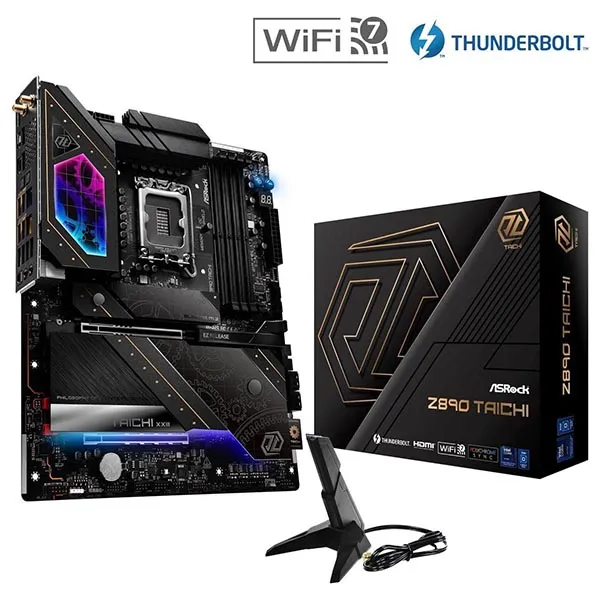

Package Contents	4 x SATA Data Cables 1 x M.2 Expansion Card 1 x ASRock WiFi 2.4/5/6 GHz Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables 1 x Screw for M.2 Socket 1 x Standoff for M.2 Socket

Warranty Period
Warranty	3 Years
