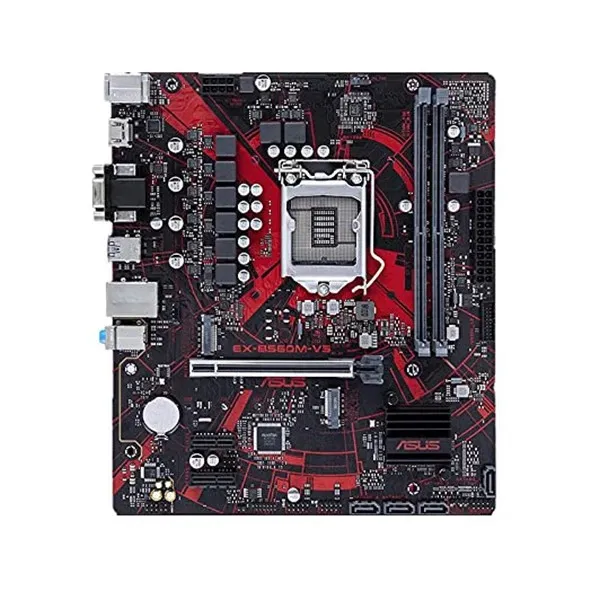

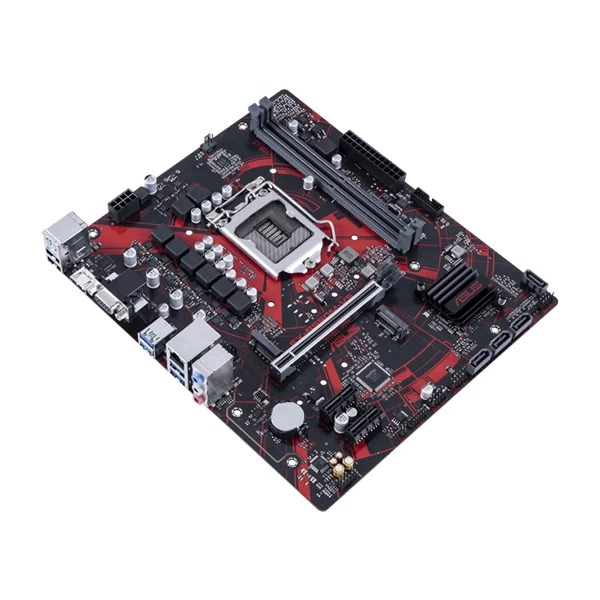

Asus EX-B560M-V5 Motherboard
Original price was: ₹9,800.00.₹9,299.00Current price is: ₹9,299.00.
(-5%)- The ASUS EX-B560M-V5 motherboard is designed to support latest Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core. The board is PCIe 4.0 Ready supporting up to 64GB DDR4 5000MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- An innovative moisture-resistant coating provides comprehensive protection to prolong the life of your Expedition motherboard. he coating even has a luminous effect when viewed under ultraviolet light, letting you clearly see where it is applied.
- Enjoy extended connectivity with the next-gen technology of PCIe 4.0, Dual M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1 Type-A. With the integration of LANGuard gives advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput.
- ASUS EXPEDITION motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build.
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| CPU | Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Chipset | B560 |
| Memory | Max Memory Size:64GB DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates. |
| Expansion Slots | Intel® 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot – Intel® 11th Gen processors support PCIe 4.0 x16 – Intel® 10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 2 x PCIe 3.0 x1 slots |
| Storage | Intel®11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
| USB | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers supports additional 4 USB 2.0 ports |
| Audio | Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback” Audio Features – Premium Japanese audio capacitors – Audio Shielding – Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output. |
| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMITM port 3 x Audio jacks 1 x Realtek 1Gb Ethernet port 1 x PS/2 Keyboard/Mouse combo port |
| Intrernal I/O Connectors | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header |
| Special Features | ASUS 5X PROTECTION III – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – Q-DIMM – Q-Slot Non-stop Challenger – ASUS iCafe labs certified Non-stop Durability – Luminous anti-moisture coating – USBGuard |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 ANCHOR Installation Media 1 x Support DVD Documentation 1 x User manual |
| Operating System | Windows 10 64bit |
| Form Factor | microATX 24.4cm x 21.1cm |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
