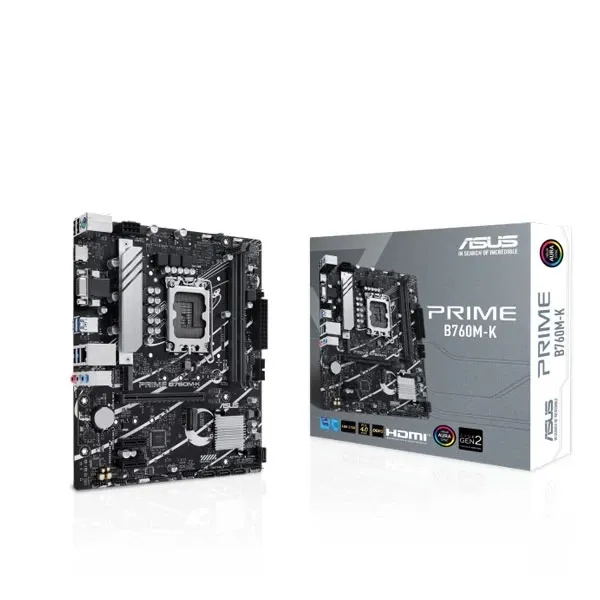

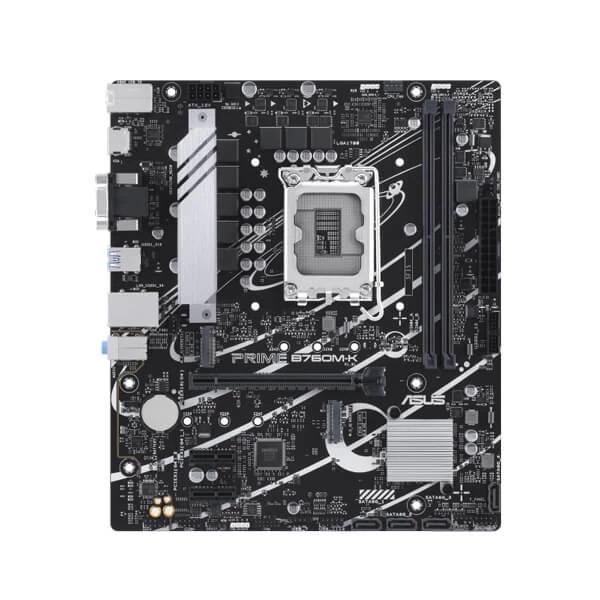

Asus Prime B760M-K DDR5 Motherboard Supports Intel 12th, 13th & 14th Gen Processors

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• 1 x VGA port
• 1 x HDMITM port

Graphics specifications may vary between CPU types. Supports 4K@60Hz as specified in HDMITM 2.1.

• 1 x PCIe 4.0 x16 slot

Intel B760 Chipset

• 2 x PCIe 4.0 x1 slots

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A）

Front USB (Total 5 ports)

• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

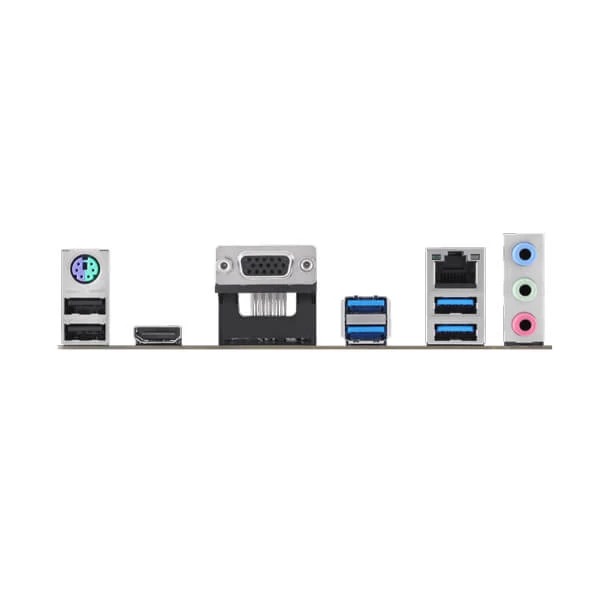

• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x VGA port
• 1 x HDMITM port
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector

Storage related

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

• 2 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS EZ DIY

• ProCool

ASUS Thermal Solution

• VRM heatsink design

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

• 2 x SATA 6Gb/s cables

Miscellaneous

• 1 x I/O Shield
• 2 x M.2 anchors
• Documentation
• 1 x User guide
