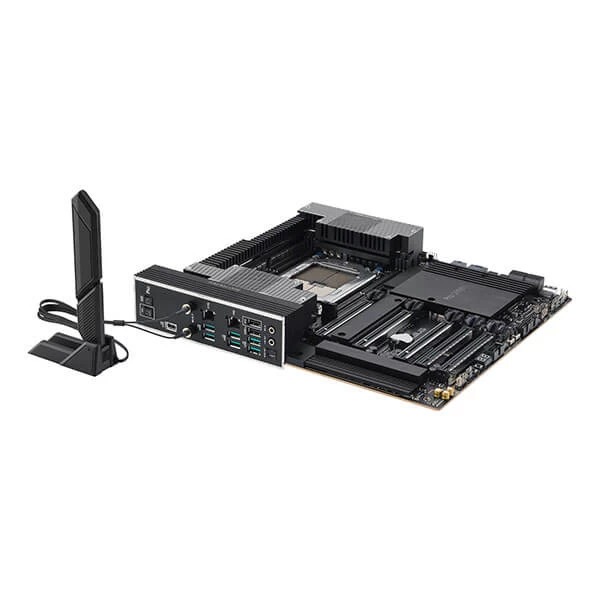

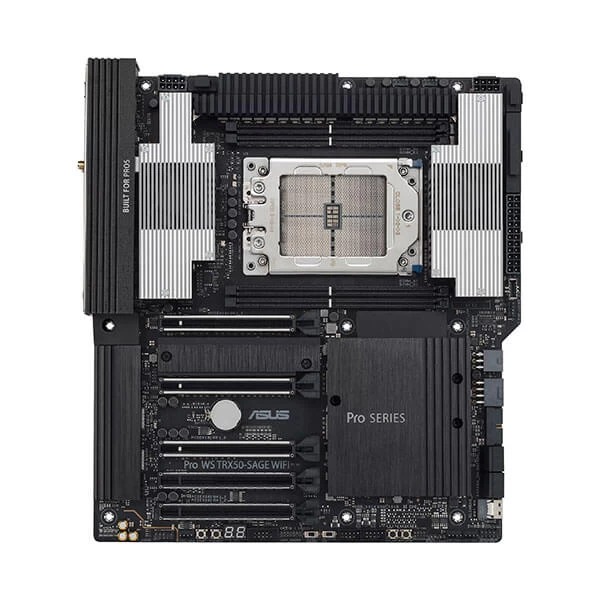

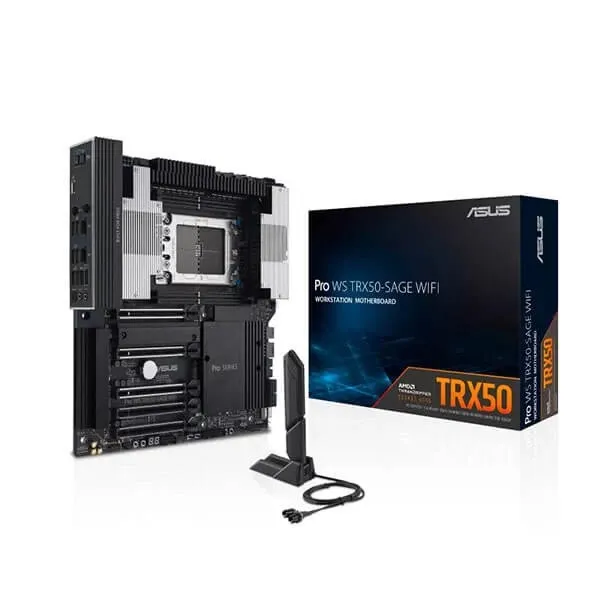

Asus Pro WS TRX50-SAGE WIFI Motherboard

0 Reviews
In stock

Original price was: ₹120,000.00.Current price is: ₹82,953.00.

(-31%)
  • Estimated delivery time 14-30 days
  • 18 months warranty at Genuine Warranty Center.
  • Whats in the box: charging cable and block

Product details

Model Pro WS TRX50-SAGE WIFI
CPU AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors
Chipset AMD TRX50 Chipset
Memory 4 x DIMM slots, DDR5, ECC Registered Memory* 4 Channel Memory Architecture * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site
Expansion Slots AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors

  • 2 x PCIe 5.0 x16 slots
  • 1 x PCIe 5.0 x16 slot(x8 mode)
  • 1 x PCIe 4.0 x16 slot
  • 1 x PCIe 4.0 x16 slot(x4 mode)

* Please check the PCIe bifurcation table on the support site
Storage Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen™ Threadripper™ 7000 Series Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)AMD TRX50 Chipset M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports 1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet
  • 1 x Marvell® AQtion 10Gb Ethernet
  • 1 x Intel® I226-LM 2.5Gb Ethernet
Wireless & Bluetooth Wi-Fi 7* 2×2 Wi-Fi 7 (802.11be)** Supports 2.4/5/6GHz frequency band*** Support Wi-Fi 7 160MHz bandwidth, up to 2.8Gbps transfer rate. Bluetooth® v5.4**** * Compatible with Windows 11 or later. ** Wi-Fi 7 MLO(Multi-link Operation) full functions support will be ready in Windows 11 2024 Platform (Windows 11 24H2) or later. *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. **** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
USB
  • Rear USB (Total 9 ports)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A )
  • 2 x USB 2.0 ports (2 x Type-A )
  • Front USB (Total 7 ports)
  • 1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
  • 1 x USB 5Gbps header supports 2 additional USB 5G ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio Realtek ALC1220P Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback
Back Panel I/O Ports
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 2 x USB 2.0 port (2 x Type-A)
  • 1 x Wi-Fi Module
  • 1 x Marvell® AQtion 10Gb Ethernet port
  • 1 x Intel® 2.5Gb Ethernet port
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
Internal I/O Connectors Fan and Cooling related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x W_PUMP+ header
  • 4 x 4-pin Chassis Fan headers
  • 2 x 4-pin VRM Fan header (with VRM FAN onboard)

Power related

  • 2 x 24-pin Main Power connectors
  • 2 x 8-pin +12V Power connectors
  • 2 x 8-pin PCIe to CPU power connectors
  • 1 x 6-pin PCIe Power connector
  • 1 x 8-pin PCIe Power connector

Storage related

  • 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
  • 1 x SlimSAS port

USB

  • 1 x USB 20Gbps connector supports USB Type-C®
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

  • 1 x BMC header1 x COM Port header
  • 1 x USB4 header1 x FlexKey button
  • 1 x Front panel audio header (F_AUDIO)
  • 1 x Start button
  • 1 x Safe boot button
  • 1 x ReTry button1 x LN2 mode jumper
  • 1 x Slow mode switch
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin system panel header
  • 1 x Chassis intrusion header
  • 1 x Thermal Sensor header
Special Features ASUS Q-Design – Q-Code – M.2 Q-Latch – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink and onboard thermal pads – VRM heatsink design with active fans ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMMBespoke Motherboard Design & Business Focused Features – 24/7 Reliability – Overcurrent Protection
Software Features ASUS Exclusive Software Armoury Crate- Fan Xpert 4 ASUS CPU-Z IT Management software supported – ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUSTeK. EzFlash UtilityFlexKey
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE (UEFI mode)
Accessories Cables

  • 2 x SATA 6Gb/s cables
  • 1 x CPU 8-pin to PCIe 8-pin adapter cable package
  • 1 x Thermistor cable pack

Miscellaneous

  • 1 x ASUS 2×2 Dual-Band Wi-Fi moving antennas
  • 1 x M.2 Q-Latch package(2 in 1)
  • 2 x M.2 Rubber Packages
  • 1 x Q-connectorDocumentation
  • 1 x ACC Express Activation Key Card
  • 1 x QSG
Operating System Windows® 11 64-bit
Form Factor CEB Form Factor 12 inch x 11 inch (30.5 cm x 28.0 cm)
 Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
