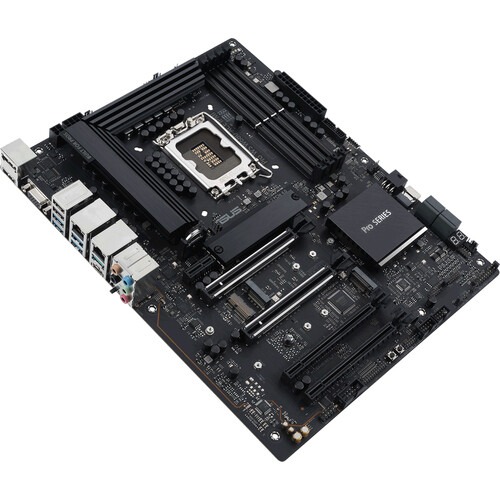

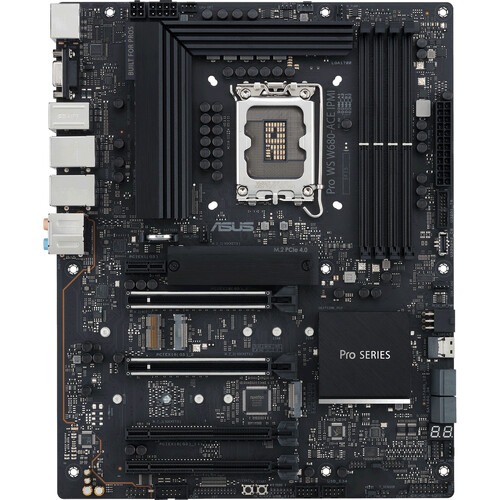

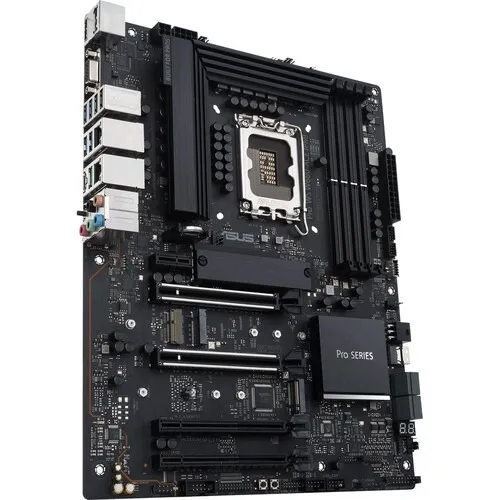

Name: ASUS Pro WS W680-ACE IPMI LGA 1700 ATX Motherboard Supports Intel 13th &amp; 14th Gen Processors
SKU: 17632
Availability: InStock

ASUS Pro WS W680-ACE IPMI LGA 1700 ATX Motherboard Supports Intel 13th & 14th Gen Processors

Rated 0 out of 5

0 Reviews

In stock

(-60%)

ATX Form Factor
W680 Chipset
LGA 1700 Socket
4 x Dual-Channel DDR5 RAM Slots
4 x SATA III, 3 x M.2 PCIe
2 x PCIe 5.0 x16, 2 x PCIe 3.0 x16 (x4)

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

CPU

Chipset	Intel W680
CPU Socket	LGA 1700

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	1x DisplayPort 1x HDMI 1x VGA
Audio	5x 1/8″ / 3.5 mm
Ethernet / Controller	2x Intel 2.5Gigabit
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 MHz
Maximum Capacity	128 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC, ECC Unbuffered

Storage Expansion

SATA	4x SATA III
M.2	2x M Key 2242, 2260, 2280 (PCIe 4.0 x4) 1x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)
RAID Support	RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5, 10 (M.2)

Internal I/O

Expansion Slots	2x PCIe 5.0 x16 2x PCIe 3.0 x16 (x4 mode) 1x PCIe 3.0 x1
USB	1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	2x 4-Pin CPU 3x 4-Pin System 1x Thermal Sensor
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX 1x 4-Pin ATX 1x 6-Pin ATX
Security	TPM Header
Diagnostics	Clear CMOS, Start
Add-On	1x Thunderbolt Header
Legacy	1x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1, USB 3.2 Gen 2×2

Audio

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wireless

Wi-Fi	No
Bluetooth	No
Module Support	1 E Key M.2

Software

OS Compatibility

Windows 10 to 11

Physical

Form Factor	ATX
Dimensions	9.6 x 12″ / 24.4 x 30.5 cm
