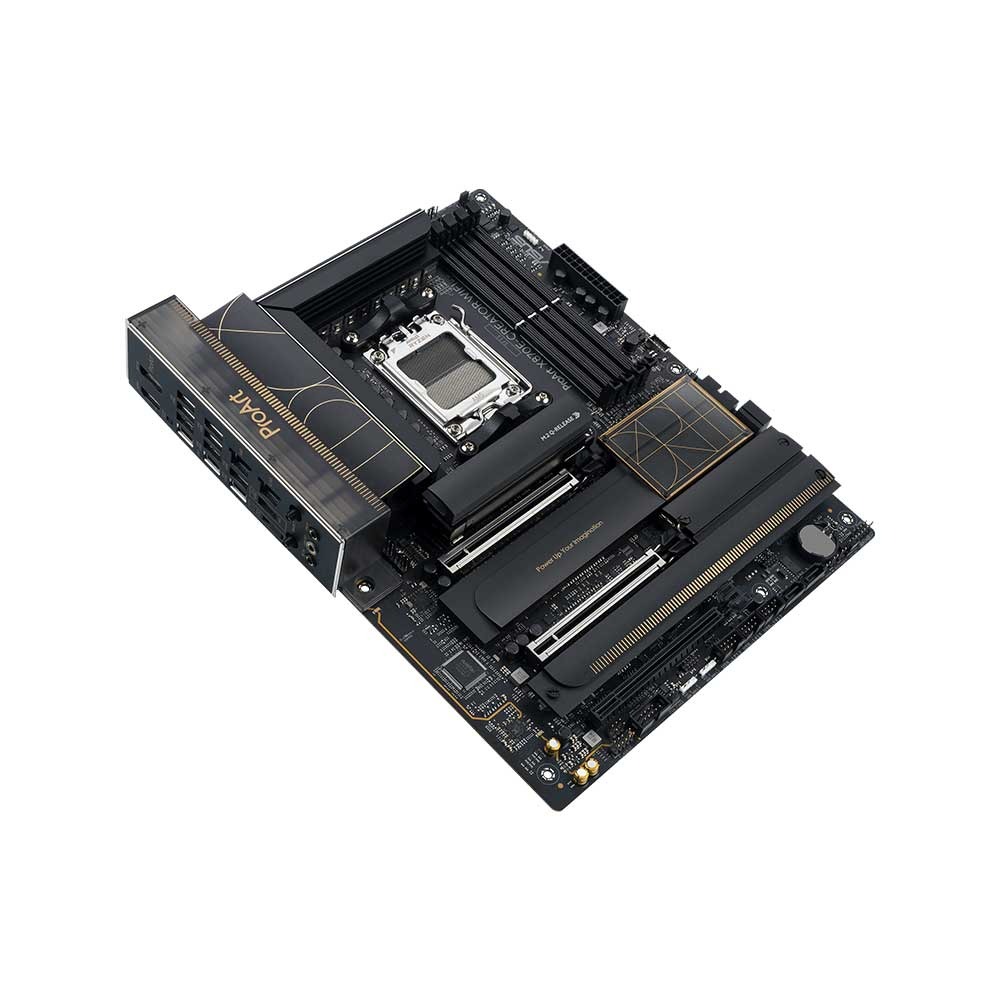

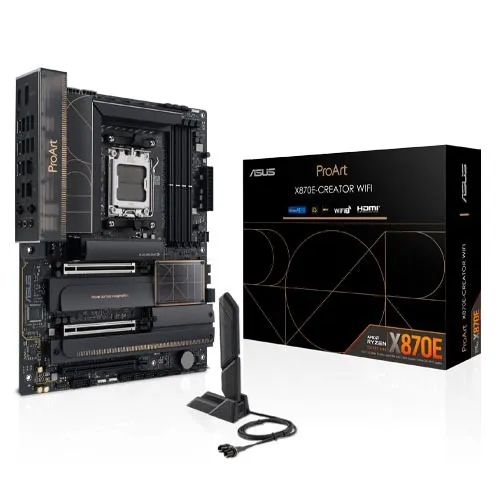

ASUS ProArt X870E-CREATOR WiFi Motherboard
Original price was: ₹80,000.00.₹50,999.00Current price is: ₹50,999.00.
(-36%)- Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 socket: Ready for AMD Ryzen™ 9000, 8000 and 7000 Series Desktop Processors
- Robust performance: 16+2+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
- Future-proofed connectivity: Dual USB4® ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe® 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Model | ProArt X870E-Creator WiFi |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD X870E |
| Memory | 4 x DIMM slots, max. 192GB, DDR5 |
| Support up to | |
| 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, | |
| ECC and Non-ECC Un-buffered DIMM | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| Graphics | 1 x HDMI™ port** |
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **** VGA resolution support depends on processors’ or graphic cards’ resolution. | |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* |
| 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) | |
| AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* | |
| 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) | |
| AMD Ryzen™ 8500 & 8300 Series Desktop Processors* | |
| 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled) | |
| AMD X870E Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each. | |
| *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4. | |
| To ensure compatibility of the device installed, please refer to | |
| https://www.asus.com/support/ for the list of supported peripherals. | |
| Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)* | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot is not supported | |
| AMD X870E Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| * PCIEX16(G5)_2 slot shares bandwidth with M.2_2. | |
| Ethernet | 1 x Marvell® AQtion 10Gb Ethernet |
| 1 x Intel® 2.5Gb Ethernet | |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2×2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor’s website for details. | |
| USB | Rear USB (Total 11 ports) |
| 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) | |
| 1 x USB 20Gbps port(s) (1 x USB Type-C®) | |
| 7 x USB 10Gbps port(s) (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** | |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports | |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports | |
| “* USB Type-C® power delivery output: max. 5V/3.0A” | |
| ** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A | |
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |

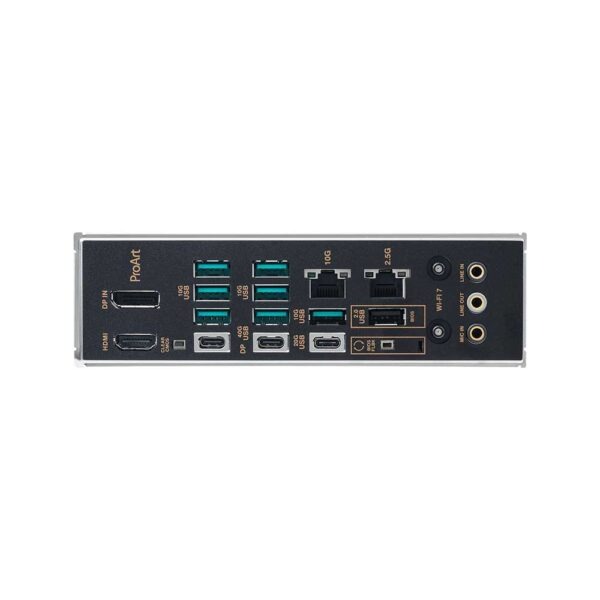

| Back Panel I/O Ports | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) |
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 7 x USB 10Gbps ports (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| 1 x DisplayPort (Input only) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Marvell® AQtion 10Gb Ethernet | |
| 1 x Intel® 2.5Gb Ethernet | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) | |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports | |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM (- Digital power design) | |
| Enhanced DRAM Overcurrent Protection | |
| ESD Guards | |
| LANGuard | |
| Overvoltage Protection | |
| Safeslot | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| M.2 Q-Release | |
| M.2 Q-Slide | |
| PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| Q-Antenna | |
| Q-Connector | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink backplate | |
| M.2 heatsinks | |
| VRM heatsink design ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| ProCool | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| AURA Sync | |
| Addressable Gen 2 headers | |
| Bespoke Motherboard Design & Business Focused Features | |
| 24/7 Reliability | |
| Overcurrent Protection | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| Support: up to 30W fast charging and USB Wattage Watcher | |
| Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A | |
| Compatible with PD3.0 | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 4 with AI Cooling II | |
| Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| USB Wattage Watcher | |
| TurboV Core | |
| ASUS CPU-Z | |
| ProArt Creator Hub | |
| CreationFirst | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
| Remote Management Features | IT Management software supported |
| ASUS Control Center Express(ACCE) | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x DisplayPort cable | |
| 4 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 22110 | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Latch Q-Slide package for M.2 backplate | |
| 2 x Rubber Packages for M.2 | |
| 1 x ProArt ruler | |
| Documentation | |
| 1 x Quick start guide | |
| 1 x ACC Express Activation Key Card | |
| Operating System | Windows® 11 |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Warranty | 3 Years |
