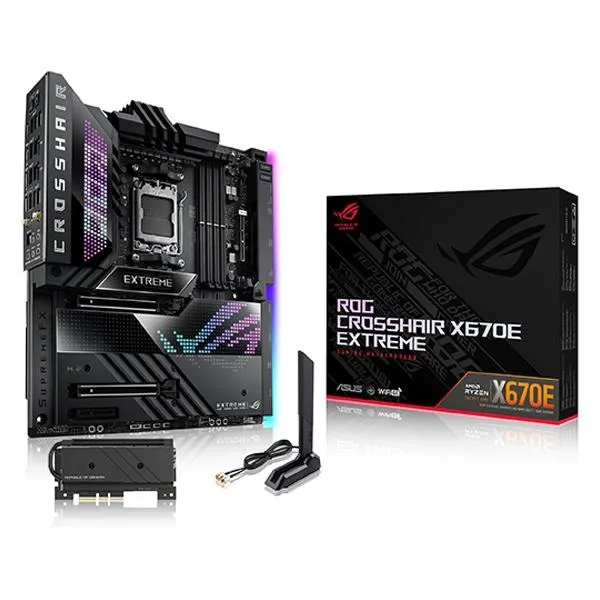

Asus ROG Crosshair X670E Extreme (Wi-Fi) Motherboard

• 4 x DIMM, Max. 128GB, DDR5
• 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

• 2 x USB4® ports support USB Type-C® display outputs
• VGA resolution support depends on processors’ or graphic cards’ resolution.

• AMD Ryzen™ 7000 Series Desktop Processors
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)*
• AMD X670 Chipset
• 1 x PCIe 4.0 x4 slot
• When the PCIe 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only.
• When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4.

• Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• GEN-Z.2_1 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD X670 Chipset
• GEN-Z.2_2 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 6 x SATA 6Gb/s ports
• *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• ** When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4.

• 1 x Intel® 2.5Gb Ethernet
• 1 x Marvell® AQtion 10Gb Etherne
• t ASUS LANGuard

• Wi-Fi 6E 2×2 Wi-Fi 6E
• (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2
• WiFi 6E 6GHz regulatory may vary between countries.

• Rear USB (Total 12 ports)
• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
• Front USB (Total 10 ports)
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)
• 1 x USB 3.2 Gen Gen 2 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
•  To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback

Audio Features

• SupremeFX Shielding Technology
•  ESS® ES9218 QUAD DAC
• LED-illuminated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
•  Audio cover

• 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®)
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 1 x Marvell® AQtion 10Gb Ethernet port
• 5 x LED-illuminated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™button
• 1 x Clear CMOS button

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 2 x 4-pin Chassis Fan headers
• 2 x 4-pin Radiator Fan headers
• 2 x W_PUMP+ headers
• 1 x WB_SENSOR header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header

Power related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connecto
• r 1 x 6-pin PCIe Graphics Card connector

Storage related

• 2 x M.2 slots (Key M)
• 1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen Gen 2 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

• 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
• 1 x Addressable Gen 2 header
• 1 x Alteration Mode Switch
• 1 x Aura RGB header
• 1 x BIOS Switch button
• 2 x BCLK button
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x LN2 Mode jumper
• 1 x Osc sence header
• 12 x ProbeIt Measurement Points
• 1 x ReTry button
• 1 x RSVD switch
• 1 x RSVD header
• 1 x Safe Boot button
• 1 x Slow Mode switch
• 1 x Start button
• 1 x V_Latch switch
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

• FlexKey button
•  LN2 Mode
•  ProbeIt
•  ReTry button
•  Safe boot button
•  Start button
•  Slow Mode

Extreme Engine Digi+

• 10K Black Metallic Capacitors
• MicroFine Alloy Choke

ASUS Q-Design

• M.2 Q-Latch
• PCIe Slot Q-Release
• Q-Code
• Q-Connector
• Q-DIMM
• – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• – Q-Slot

ASUS Thermal Solution

• M.2 heatsink backplate
• M.2 heatsink
• Steel backplate
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• Aura Sync
• ROG Aura Sync backplate
• Aura RGB header
• Addressable Gen 2 headers

Dual BIOS

• OLED 2
• Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support
• Support: up to 60W charging*
• Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
• Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
•  To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W.

• GameFirst VI
• ROG CPU-Z
• ROG True Voltician
• Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS® Sound Unbound
• BullGuard Internet Security (1-year full version)

ASUS Exclusive Software Armoury Crate

• AIDA64 Extreme (1 year full version)
• Aura Creator
• Aura Sync
• Fan Xpert 4 with AI Cooling II
• Power Saving
• Two-Way AI Noise Cancelation
• AniMe MatrixTM LED Display
• OLED Display
• AI Suite 3
• TPU
• DIGI+ Power Control
• Turbo app
• PC Cleaner
• MyAsus
• WinRAR

UEFI BIOS

• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• 1 x 1-to-3 ARGB splitter cable
• 1 x 1-to-2 ARGB splitter cable
• 2 x 1-to-4 fan splitter cable
• 1 x RGB extension cable
• 3 x ROG weave SATA 6G cables pack
• 1 x 3-in-1 Thermistor cables pack

ROG Fan Controller

• 1 x ROG Fan Controller
• 1 x Fan EXT PWR cable
• 1 x ARGB input cable
• 1 x USB input cable
• 1 x ROG Fan Controller 3M Mounting tape package
• 1 x Fan Controller manual

ROG GEN.2 Card with Heatsink

• 1 x ROG GEN-Z.2 with heatsink
• 1 x M.2 pad package for ROG GEN-Z.2
• 2 x M.2 screw package for ROG GEN-Z.2

PCIe 5.0 M.2 Card with Heatsink

• 1 x PCIe 5.0 M.2 Card with heatsink
• 1 x M.2 screw package for ROG PCIe 5.0 M.2 Card

ROG True Voltician

• 1 x ROG True Voltician
• 4 x cables for ROG True Voltician

Additional Cooling Kit

• 1 x Thermal pad for M.2

Miscellaneous

• 1 x ASUS Wi-Fi moving antennas
• 1 x Rubber Package for M.2 backplate
• 1 x Q-connector
• 2 x M.2 Q-Latch packages for M.2 backplate
• 1 x ROG Graphics card holder
• 1 x ROG key chain
• 1 x ROG logo plate sticker
• 1 x ROG screwdriver
• 1 x ROG stickers
• 1 x ROG thank you card

Installation Media

• 1 x USB drive with utilities and drivers

Documentation

• 1 x User guide
