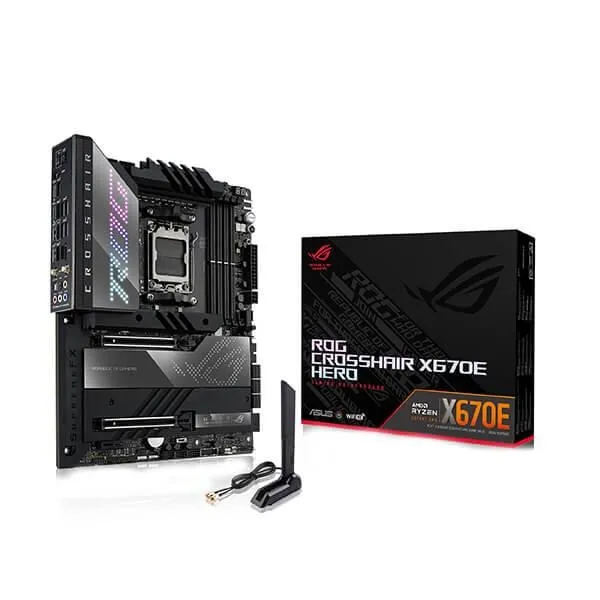

Asus ROG Crosshair X670E Hero (Wi-Fi) Motherboard

• 4 x DIMM, Max. 128GB, DDR5
• 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD® EXTended Profiles for Overclocking (EXPO™)
• OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function more information r

• 1 x HDMI® port
• 2 x USB4® ports support USB Type-C® display outputs
• Supports 4K@60Hz as specified in HDMI 2.1.
• VGA resolution support depends on processors’ or graphic cards’ resolution.

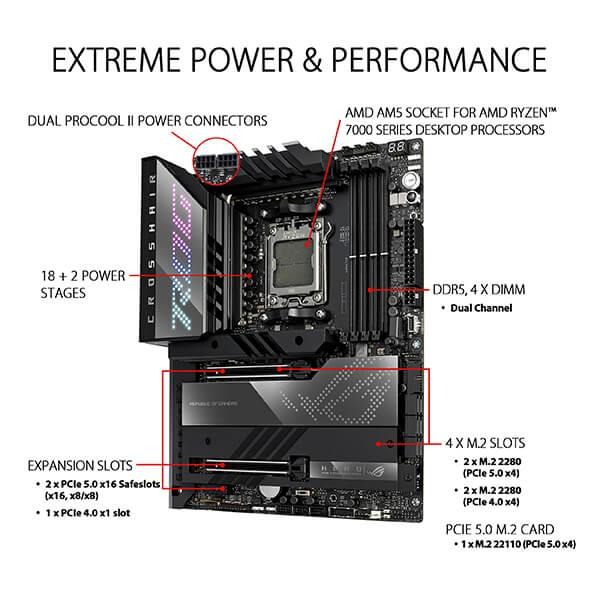

• AMD Ryzen™ 7000 Series Desktop Processors
• 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 mode(s)
• AMD X670 Chipset
• 1 x PCIe 4.0 x1 slots
• When the PCIe 5.0 M.2 card is installed on the PCIEX16_2 slot, PCIEX16_1 will run x8 only

• Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• AMD X670 Chipset
• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 )
• 6 x SATA 6Gb/s ports
• AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• Wi-Fi 6E
• 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth v5.2
• WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)

Front USB (Total 11 ports)

• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® with up to 60W PD/QC4+)
• 2 x USB 3.2 Gen 1 headers) support additional 4 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback

Audio Features

• SupremeFX Shielding Technology
• ESS® ES9218 QUAD DAC
• Gold-plated audio jacks
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

• 2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x Type-C®)
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet
• 5 x Gold-plated audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™  button
• 1 x Clear CMOS button

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header
• 1 x 2-pin Water In header
• 1 x 2-pin Water Out header
• 1 x 3-pin Water Flow header

Power related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• 1 x 6-pin PCIe Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®)
• 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 1 x Alteration Mode Switch
• 1 x Aura RGB header
• 1 x FlexKey button
• 1 x Front Panel Audio header (AAFP)
• 1 x ReTry button
• 1 x Start button
• 1 x 10-1 pin System Panel header
• 1 x Thermal Sensor header

• FlexKey button
• ReTry button
• Start button
• Extreme Engine Digi+
• 10K Black Metallic Capacitors
• MicroFine Alloy Choke

ASUS Q-Design

• M.2 Q-Latch
•  PCIe Slot Q-Release
•  Q-Code
•  Q-Connector
•  Q-DIMM
•  Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
•  Q-Slot

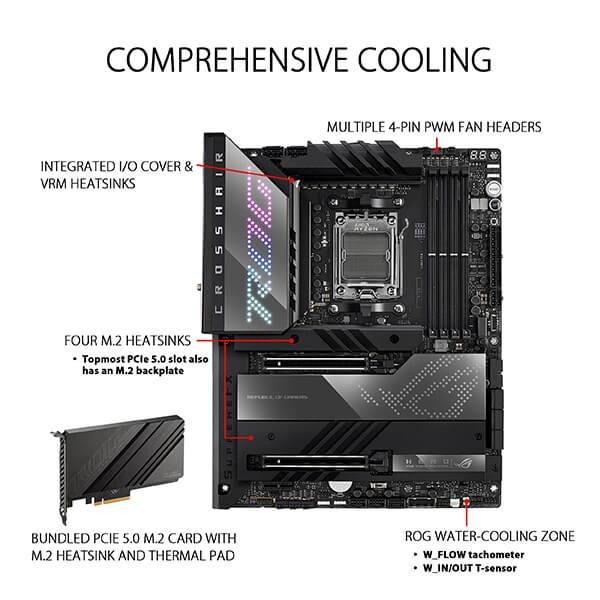

ASUS Thermal Solution

•  M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM

Aura Sync

• Aura RGB header
•  Addressable Gen 2 headers

Front Panel USB 3.2 Gen 2×2 with Quick Charge 4+ Support

• Support: up to 60W charging
• Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
• Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS
•  To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W

• GameFirst VI
•  ROG CPU-Z
•  Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS® Sound Unbound
• BullGuard Internet Security (1-year full version)

ASUS Exclusive Software

• Armoury Crate
•  AIDA64 Extreme (1 year full version)
•  Aura Creator
•  Aura Sync
•  Fan Xpert 4 with AI Cooling II
•  Power Saving
•  Polymo Lighting
•  Two-Way AI Noise Cancellation
• AI Suite 3
• TPU
• DIGI+ Power Control
• Turbo app
• PC Cleaner
• MyAsus
• WinRAR

UEFI BIOS ASUS EZ DIY

• ASUS CrashFree BIOS 3
•  ASUS EZ Flash 3
•  ASUS UEFI BIOS EZ Mode

• 1 x ARGB RGB extension cable
• 1 x RGB extension cable
• 4 x SATA 6Gb/s cables
• PCIe 5.0 M.2 Card with Heatsink
• 1 x PCIe 5.0 M.2 Card with heatsink
• 1 x M.2 screw package for PCIe 5.0 M.2 Card

Additional Cooling Kit

• 1 x Thermal pad for M.2

Miscellaneous

• 1 x ASUS Wi-Fi moving antennas
• 3 x Rubber Packages for M.2 backplate
• 1 x Q-connector
• 1 x M.2 Q-Latch package
• 3 x M.2 Q-Latch packages for M.2 backplate
• 1 x ROG Graphics card holder
• 1 x ROG key chain
• 1 x ROG stickers
• 1 x ROG thank you card

Installation Media

• 1 x USB drive with utilities and drivers

Documentation

• 1 x User guide

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
