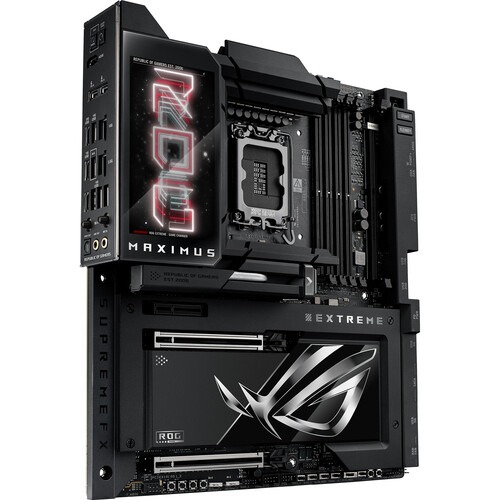

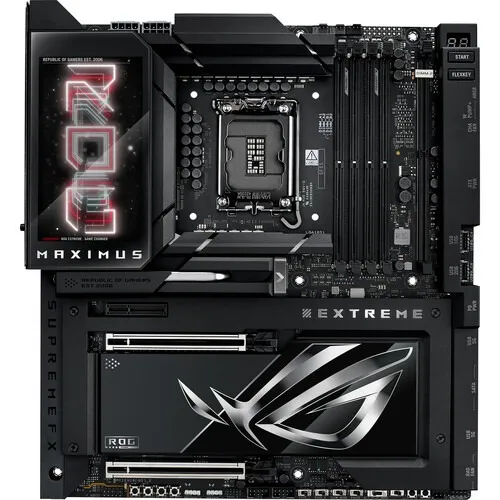

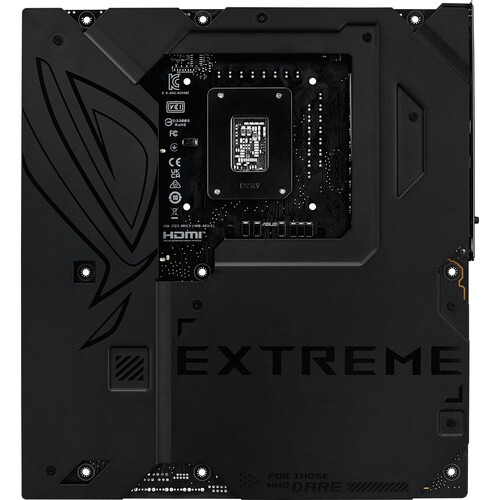

Name: ASUS ROG MAXIMUS Z890 EXTREME LGA 1851 E-ATX Motherboard
SKU: 17488
Availability: InStock

Product details

Brand	ASUS
Model	MAXIMUS Z890 EXTREME

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Supports DIMM Flex Supports DIMM Fit NitroPath DRAM Technology * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots
PCI Express 5.0 x16	Intel Core Ultra Processors (series 2)* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
PCI Express x4	Intel Z890 Chipset 1 x PCIe 4.0×4 slotM.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Support Intel Core Ultra Processors (series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes) Intel Z890 Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
SATA RAID	*Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Onboard Audio
Audio Channels	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output and 10 dB SNR recording input – Supports up to 32-Bit/384 kHz playback on front panel Audio Features – SupremeFX Shielding Technology – ESS ES9219 QUAD DAC – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Rear Panel Ports
Back I/O Ports	2 x Thunderbolt 5 USB Type-C ports 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors
Onboard USB	1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR headerMiscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Software Feature
BIOS Feature	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Software	ROG Exclusive Software – ROG CPU-Z – Dolby Atmos – Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – Aura Creator – Aura Sync – Fan Xpert 4 (with AI Cooling II) – GameFirst – HWiNFO – Power Saving – LCD Display ASUS AI Advisor ASUS Driver Hub Turbo Vcore ASUS GlideX Thunderbolt Share USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – ASUS MyHotkey
Windows 11	Windows 11, Windows 10 64-bit

Physical Spec
Form Factor	Extended ATX
Dimensions (W x L)	12.0″ x 10.9″
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector

Features
Features	Extreme OC Kit – FlexKey button – LN2 Mode – ProbeIt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – M.2 Q-Release – M.2 Q-Slide – Q-Release Slim (with PCIe SafeSlot) – Q-Antenna – Q-Code – Q-Connector – Q-Dashboard – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot – Q-DIMM.2 ASUS Thermal Solution – Fan bracket – M.2 heatsink backplate – M.2 heatsink – Metal backplate – VRM heatsink design – 3D VC M.2 Heatsink ASUS EZ DIY – Backplate – BIOS FlashBack button – Clear CMOS button – CPU Socket lever protector – ProCool II – Pre-mounted I/O shield – SafeSlot – SafeDIMM Aura Sync – Addressable Gen 2 headers Dual BIOS Full Color 5″ LCD Display ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support – Support: up to 60W fast charging and USB Wattage Watcher* – Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A – Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
