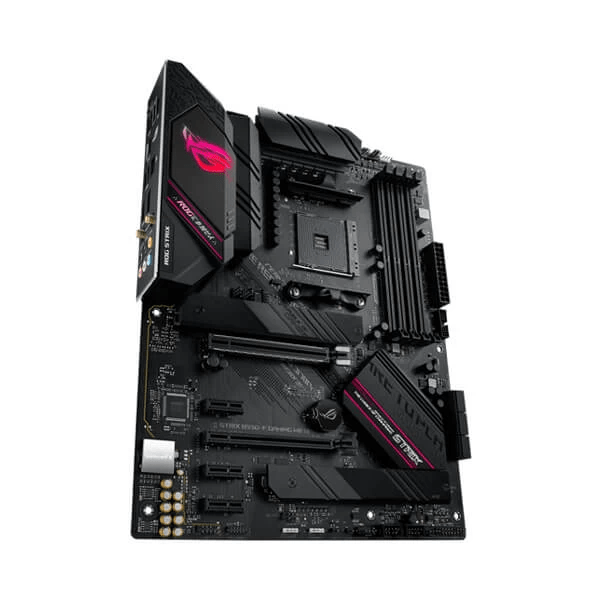

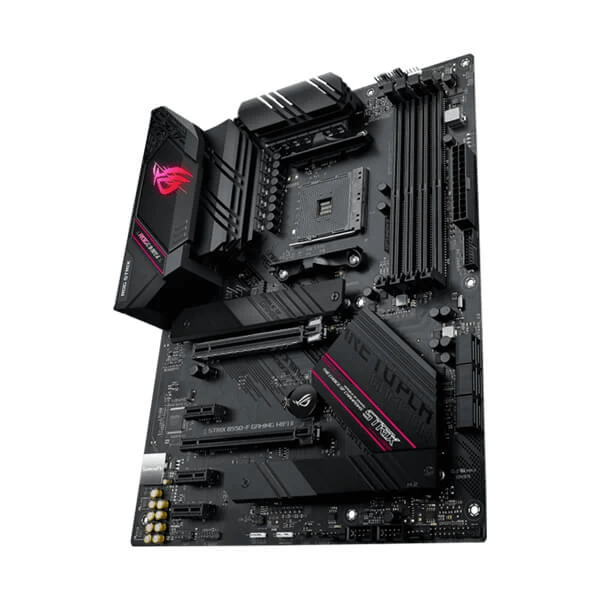

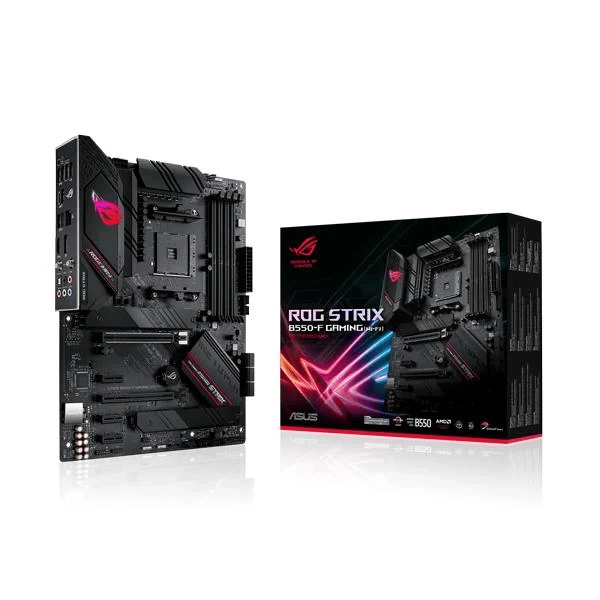

Asus ROG Strix B550-F Gaming WIFI II Motherboard
Original price was: ₹29,100.00.₹20,785.00Current price is: ₹20,785.00.
(-29%)- AM4 socket: B550-F Gaming Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: B550-F Gaming Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Model | STRIX B550-F GAMING WIFI II |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type |
|
| Chipset | AMD B550 |
| Memory | |
| Number of Memory Slots | 4×288pin |
| Memory Standard |
|
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | ECC Memory (ECC mode) support varies by CPU. |
| Buffer Supported | Un-buffered |
| Expansion Slot | |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Supports x4 mode. * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3. |
| PCI Express x1 | 3 x PCIe 3.0 x1 |
| Storage Device | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 |
* When the M.2_2 Slot is populated , SATA6G_5/6 ports will be disabled. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Onboard Audio | |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
| Audio Channels | 7.1 Channels |
| Onboard LAN | |
| LAN Chipset | Intel I225-V |
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Wi-Fi 6E 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |
| Rear Panel Ports | |
| Back I/O Ports |
|
| Internal I/O Connectors | |
| Onboard USB |
|
| Other Connectors | Fan and cooling related
Miscellaneous
|
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin |
|
| Features | Special Features: ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot ASUS Thermal Solution – M.2 heatsink AURA Sync – AURA RGB headers – Addressable Gen 2 RGB headers ASUS EZ DIY – BIOS FlashBack button – BIOS FlashBack LED – Clear CMOS header – ProCool – Pre-mounted I/O shield – SafeSlot Software Features: ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate – AIDA64 Extreme (60 days free trial) – Aura Creator – Aura Sync – Two-Way AI Noise Cancelation AI Suite 3: – Performance And Power Saving Utility EPU DIGI+ VRM Fan Xpert 4 TurboV EVO – EZ update WinRAR DAEMON Tools Norton Anti-virus software (Free Trial version) UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
