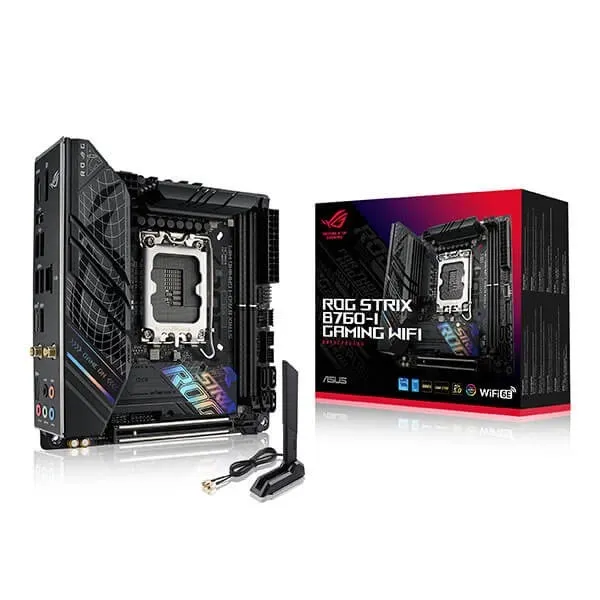

Asus ROG Strix B760-I Gaming WIFI Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
Original price was: ₹25,000.00.₹21,999.00Current price is: ₹21,999.00.

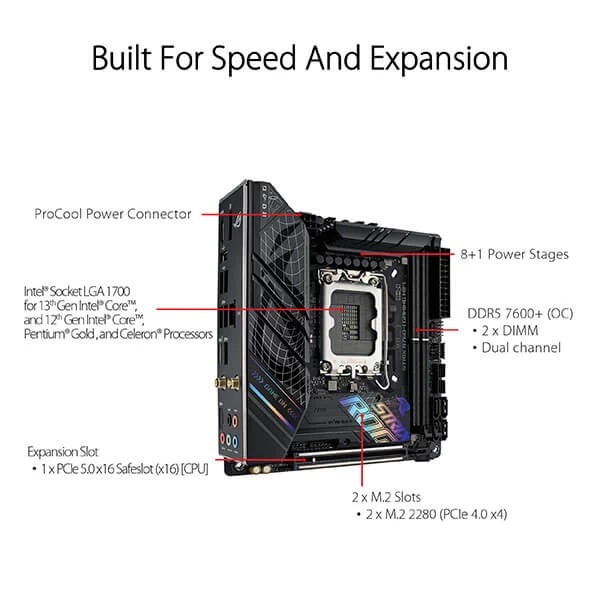

(-12%)- Intel LGA 1700 socket: Ready for 13th Gen Intel Core, and 12th Gen Intel Core, Pentium Gold, and Celeron Processors
- Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors

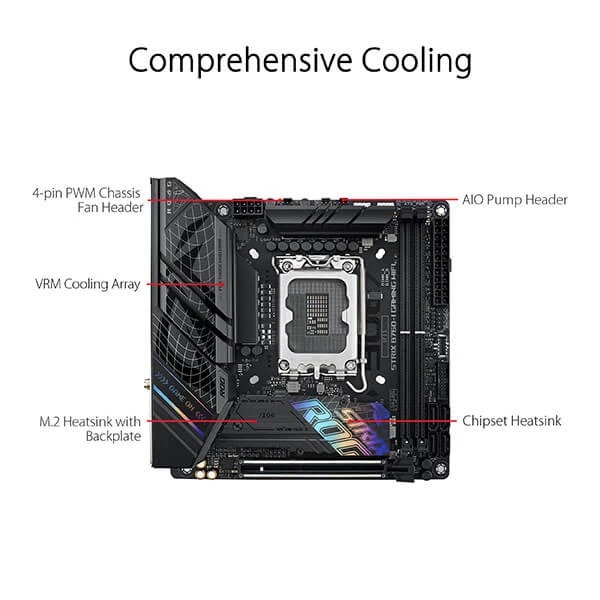

- Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area
- Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| CPU | Intel Socket LGA1700 for 13th Gen Intel Cor Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 |
| Chipset | Intel® B760 Chipset |
| Memory | 2 x DIMM, Max. 64GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II |
| Graphics | 1 x DisplayPort 1 x HDMIGraphics specifications may vary between CPU types. Support 4K@60Hz as specified in DisplayPort 1.4 Support 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | Intel® 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) Intel® B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
| Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3WiFi 6E 6GHz regulatory may vary between countries |
| USB | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports (3 x Type-A)Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
| Audio | ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium audio capacitors * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. |
| Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI® port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio jacks |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump headerPower related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connectorStorage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features | Extreme Engine Digi+ – 5K Black Metallic CapacitorsASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution – M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMM AURA Sync – Aura RGB header – Addressable Gen 2 header |
| Software Features | ROG Exclusive Software – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound UnboundASUS Exclusive Software Armoury Crate – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation – Power Saving AI Suite 3 – Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRARUEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode MemTest86 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cableAdditional Cooling Kit 1 x Thermal pad for M.2Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Documentation 1 x User manual |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
