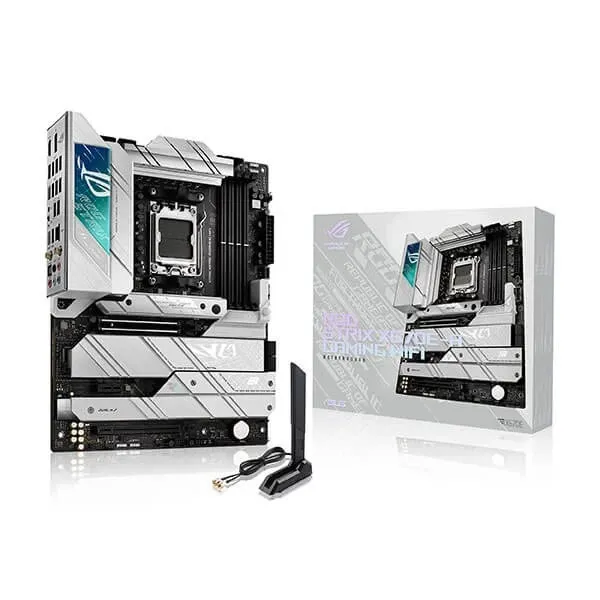

Asus ROG Strix X670E-A Gaming WiFi Motherboard

• 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

• 1 x DisplayPort
• 1 x HDMI® port
• *Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• Supports Supports 4K@60Hz as specified in HDMI 2.1.
• VGA resolution support depends on processors’ or graphic cards’ resolution.

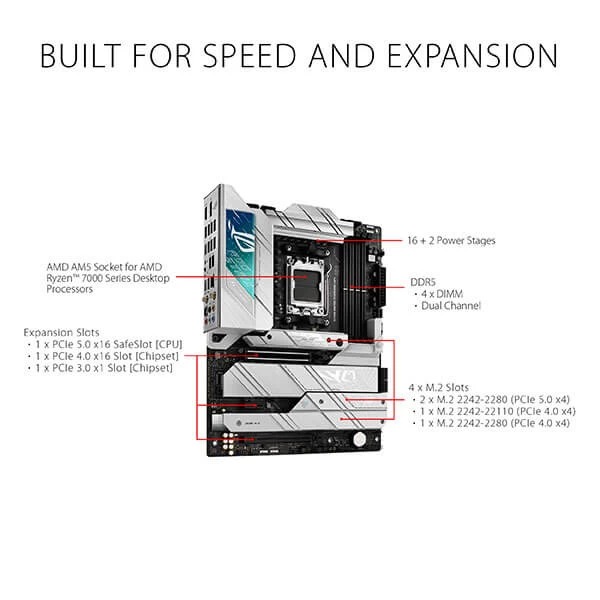

• AMD Ryzen™ 7000 Series Desktop Processors
• 1 x PCIe 5.0/4.0/3.0 x16 slot
• AMD X670 Chipset
• 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
• 1 x PCIe 3.0 x1 slot

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD X670 Chipset

• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard

• 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth v5.2

• WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.

• Rear USB (Total 12 ports)
• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Impedance sense for front and rear headphone outputs
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking –
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
• Supports up to 32-Bit/384 kHz playback”

Audio Features

• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Audio cover

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
• 8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® I225-V 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™  button
• 1 x Clear CMOS button

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 5 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connector
• Storage related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™ header

• – 5K Black Metallic Capacitors

ASUS Q-Design

• – M.2 Q-Latch –
• PCIe Slot Q-Release –
• Q-DIMM –
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) –
• Q-Slot

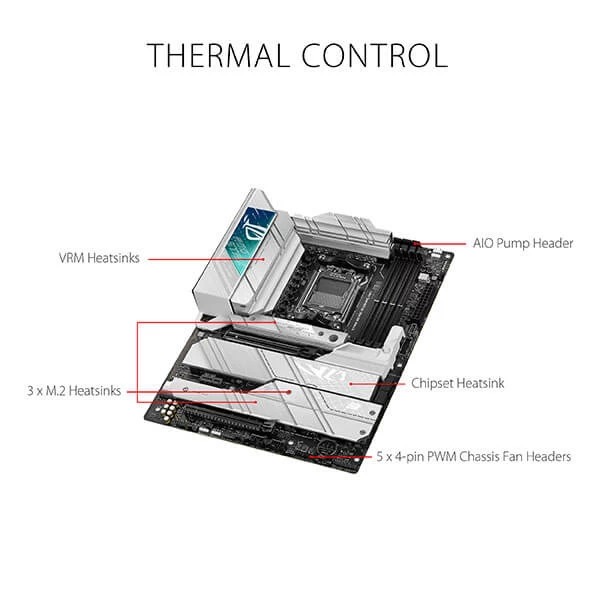

ASUS Thermal Solution

•  M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design

ASUS EZ DIY

• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• Clear CMOS button
• ProCool II
• Pre-mounted I/O shield
• SafeSlot –
• SafeDIMM

AURA Sync

• AURA RGB header
• Addressable Gen 2 headers

• – GameFirst VI
• ROG CPU-Z
• Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
• Sonic Radar III
• DTS® Sound Unbound
• Anti-virus software

ASUS Exclusive Software

• Armoury Crate
• AIDA64 Extreme (60 days free trial)
• AURA Creator
• AURA Sync
• Fan Xpert 4 (with AI Cooling II)
• Power Saving
• Two-Way AI Noise Cancellatio
• AI Suite 3
• TPU
• DIGI+ VRM
• Turbo app
• PC Cleane
• MyAsus
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• FlexKey

• 2 x SATA 6Gb/s cables

Additional Cooling Kit

• 1 x Thermal pad for M.2

Miscellaneous

• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x M.2 Q-Latch packages for M.2 backplate
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix sticker
• 1 x ROG Strix thank you card
• 2 x Rubber Packages for M.2
• 1 x Rubber Package for M.2 backplate

Documentation

• 1 x User guide

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
