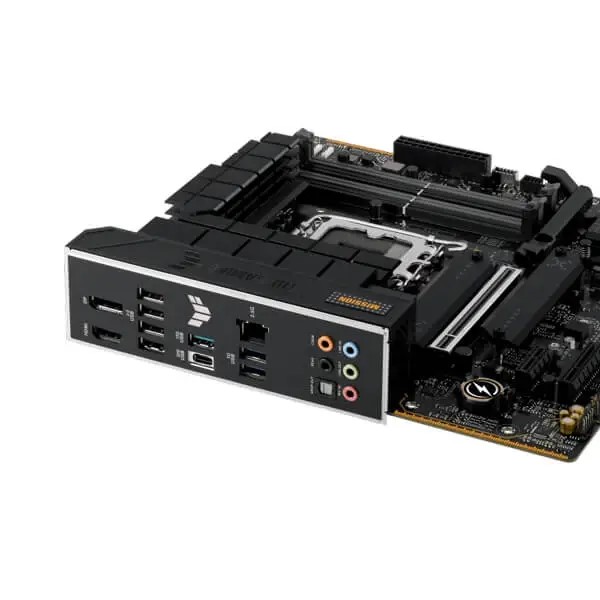

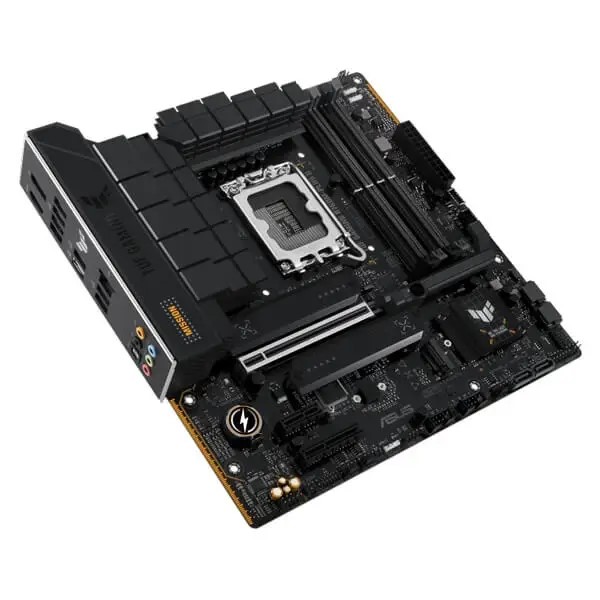

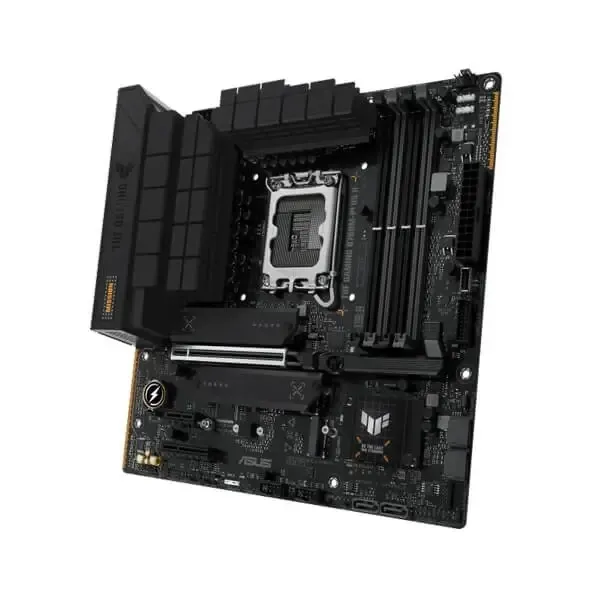

Asus TUF Gaming B760M-Plus II DDR5 Intel LGA 1700 Motherboard

• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site.
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• 1 x DisplayPort
• 1 x HDMI port

* Graphics specifications may vary between CPU types. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. ***Supports 4K@60Hz as specified in HDMI 2.1. **** VGA resolution support depends on processors’ or graphic cards’ resolution.

• IntelCore Processors (14th& 13th& 12th Gen)
• 1 x PCIe 5.0 x16 slot
• Intel B760 Chipset
• 1 x PCIe 4.0 x4 slot
• 1 x PCIe 3.0 x1 slot

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 8 ports)

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 5 additional USB 2.0 ports

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 1 x USB 10Gbps port (1 x Type-A)
• 2 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers

Power Related

• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V Power connectors
• Storage Related
• 3 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 10Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 3 x USB 2.0 headers support 5 additional USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (F-AUDIO)
• 1 x20-3 pin System Panel header with chassis intrusion function
• 1 x Thunderbolt™ (USB4®) header

• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-steel back I/O

ASUS Q-Design

• – M.2 Q-Latch
• – PCIe Slot Q-Release
• – Q-DIMM
• – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

ASUS Thermal Solution

• M.2 heatsinks
• VRM heatsink design

ASUS EZ DIY

• CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeDIMM

Aura Sync

• Addressable Gen 2 headers

• 2 x SATA 6Gb/s cables

Miscellaneous

• 1 x M.2 rubber package
• 1 x TUF GAMING sticker
• 2 x Screw packages for M.2 SSD

Documentation

• 1 x TUF certification card
• 1 x Quick start guide
