Product details

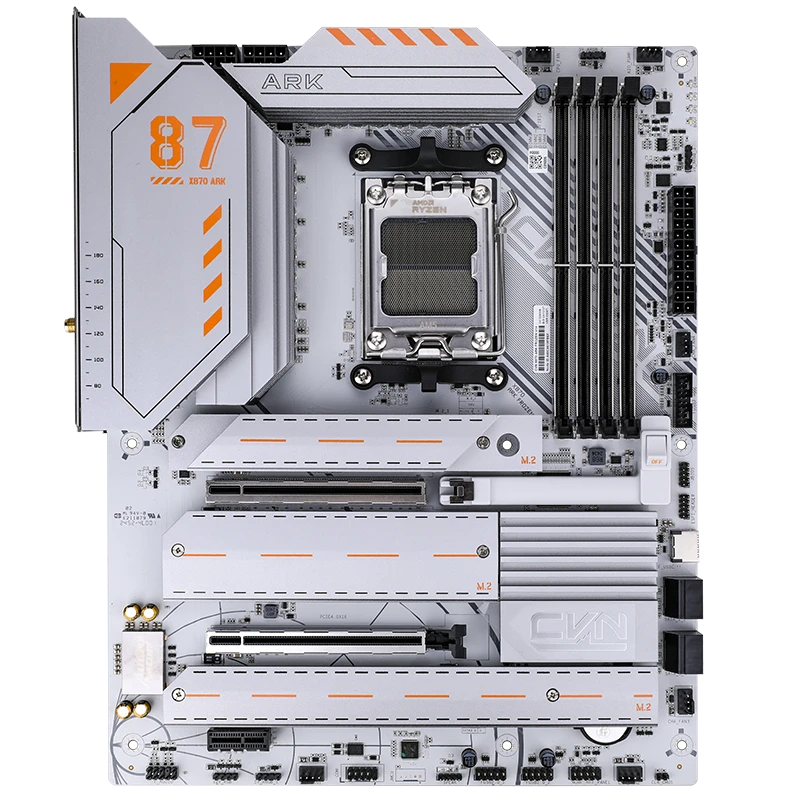

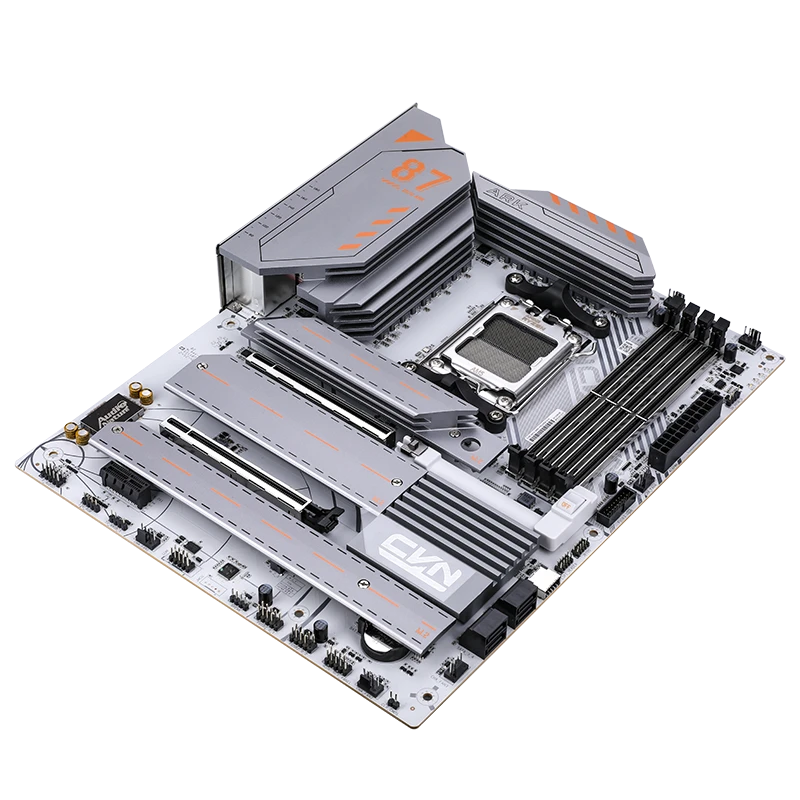

| Model | CVN X870 ARK FROZEN V14 |
|---|---|
| Product Series | CVN Series |
| Chipset | AMD X870 |
| Processor | Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard (*Please visit the Colorful official website www.colorful.cn for the latest processor support list) |
| Memory | 4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory) – Support DDR5-8200 (OC)/8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory – Support Extreme Memory Profile (XMP) memory technology – Support EXtended Profiles for Overclocking (EXPO) memory technology – Supports dual channel memory technology (* Please visit www.colorful.cn for the latest memory compatibility list) |
| SATA Ports | three M.2 slots and four SATA 6Gb/s hard drive interfaces – M.2_1 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) – M.2_2 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel) – M.2_3 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 4.0 x4, Chipset channel) (*When a device is connected to the PCIe 4.0 x4 slot, the M.2_3 slot will be blocked) (*PCIe 5.0 support depends on the motherboard’s CPU) Supports creating RAID 0 and RAID 5 with M.2 NVMe hard drives 1, RAID 5, RAID 10 disk arrays Ryzen 9000 series: RAID 0/1/5/10 Ryzen 8000 series: RAID 0/1 Ryzen 7000 series: RAID 0/1/10 *Supported RAID configurations depend on the CPU used with the motherboard |

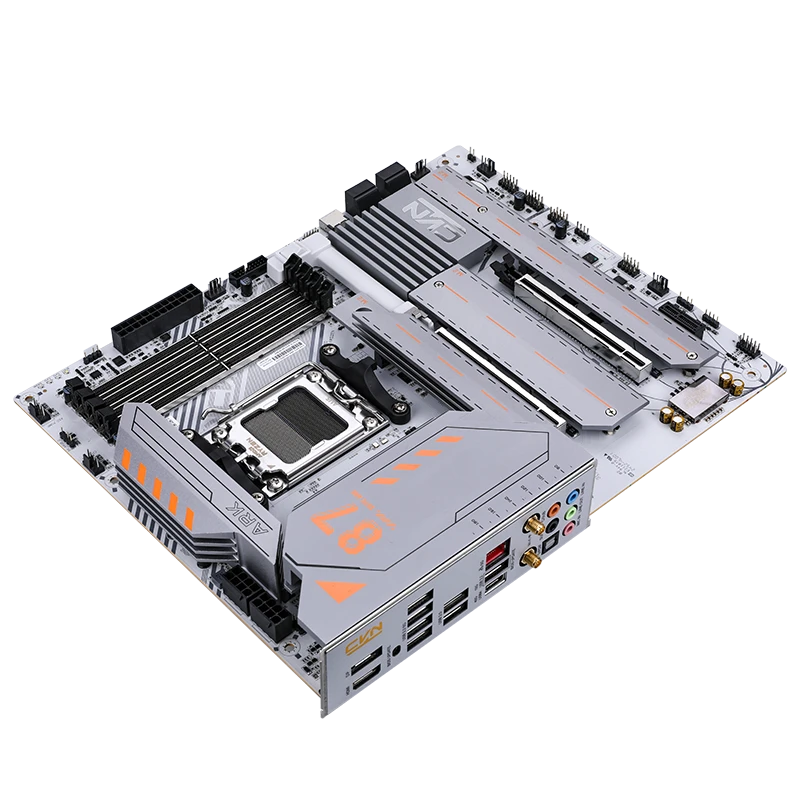

| Board I/O | Rear I/O: -2×USB 2.0 interfaces -4×USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 10Gbps Type-A interface -1×USB 4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution) -1×DP 1.2 interface, up to 4K 60Hz resolution -1×HDMI 2.0 interface, up to 4K 60Hz resolution -1×5G network interface -2×Wi Fi 7 antenna interfaces -5×Audio interfaces (audio input/output/microphone) – 1×S/PDIF audio interface -1×BIOS update button On board : -2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces -1×USB 3.2 Gen 1 Pin expandable with 2 USB 3.2 Gen 1 5Gbps Type-A interfaces -1×USB 3.2 Gen 2 Type-C Slot expandable with 1 USB 3.2 Gen 2 10Gbps Type-C interface -1×CPU fan pin -4×System fan pins -1×Water-cooled pump pin -3×5V 3-pin ARGB pins -1×12V 4-pin RGB pin -1×Front audio pin -1×Front panel pin -1×Speaker pin -1×COM port pin -1×Clear CMOS jumper -1×BIOS burner pin -1×POST card pin |
| Expansion Slots | 1 PCIe 5.0 x16 slot 1 PCIe x16 slot (supports PCIe 4.0 x4 specification) 1 PCIe 3.0 x1 slot (* When PCIe 4.0 x4 slot is connected to a device, M.2.3 slot will be shielded) |
| BIOS | 256M UEFI, support multiple languages |
| Power Management | Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot |
| Hardware Monitor | CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring |
| LAN | RTL8126-CG 5Gbit network card, MT7925 WiFi 7 wireless network card, Bluetooth 5.4 – Wi-Fi functionality may vary depending on the operating system. – For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. – For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor’s website. – Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region. – Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer’s website for the latest instructions. |
| Audio | Realtek ALC1220 high-fidelity decoding chip, supporting 7.1 channels |
| Configuration | ATX 305mm x 245mm |
