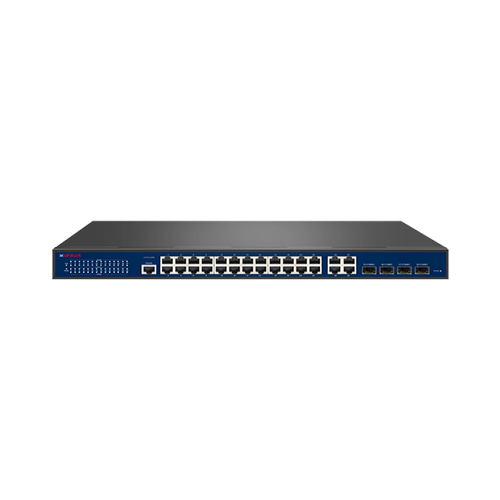

CP-ANW-GPM24G4F4-N40
- Supports IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3at, IEEE802.3af, IEEE802.3az.
- 24 x Gigabit PoE+ Ports and 4 x Gigabit Combo
- Supports MAC address auto learning and auto aging
- Store and forward mode operates
- Supports PoE power up to 30W for each PoE Port, all power up to 400W
- LED indicators for monitoring power, link/activity
- Support QoS, port mirroring, link aggregation protocol
- 19 inches full metal iron shell and internal power adapter design, suitable for rack installation
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Network Port | 24 x 10/100/1000Mbps ports 4 x 1000Mbps Combo ports 1 x Console port |
| Network Standard | IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3af, IEEE802.3at |
| Network Media (Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X: MMF, SMF |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.67Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 12K Bytes |
| PoE Ports (RJ45) | 24 x PoE ports compliant with 802.3at/af |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Indicator | Power, System (Per Device); Link/Activity (Per Port) |
| Power Budget | 400W@100~260VAC, 50/60HZ |
| Power Input | 100~240V AC, 50/60HZ |
| Power Consumption | Maximum (PoE on): 400W |
| Operating Temperature | 0°C ~55°C |
| Operating Humidity | 10%~90% (Non-condensing) |
| Storage Temperature | -40°C ~70°C |
| Storage Humidity | 5%~90% (Non-condensing) |
| Dimensions | 440mm x 290mm x 44.5mm |
