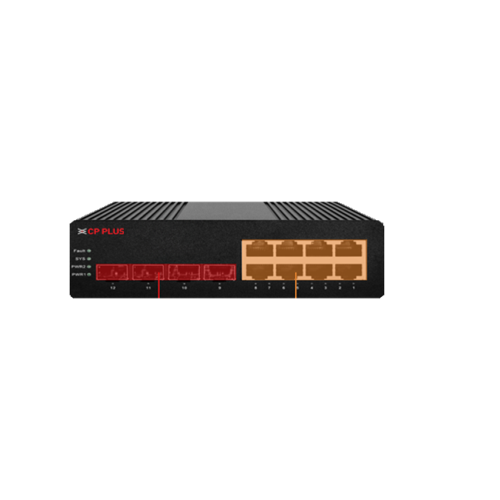

CP-ANW-GPM8F4T-N30
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3i, IEEE802.3z, IEEE802.3x
- 10/100/1000BaseT (x) automatic detection, full / half duplex MDI/MDI-X adaptive
- 1 RS232 console port.
- LED indicators.
- Support Store and Forward.
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Network Port | 8 x 10/100/1000Mbps RJ45 ports+4x1000Mbps SFP 1xRS232 console port(115200,N,8,1) 2 sets of V+, V- redundant DC power interface (4 Pin Phoenix terminal) |
| PoE Ports | Port 1-8 can support IEEE802.3af/at PoE standard |
| Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/FX IEEE 802.3ab 1000BASE-TX IEEE802.3i 10Base-T IEEE802.3z 1000Base-X IEEE802.3x |
| Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive |
| Forwarding Mode | Store and Forward (Full Wire Speed) |
| MAC Address Table | 4K |
| Switching Capacity | 24Gbps |
| Packet Forwarding Rate | 17.856Mpps |
| Packet Buffer Memory | 4.1Mbit |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5 or later UTP(≤100 meter) |
| Optical Cable | Multi mode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. |
| Indicator | Link/Act (green); Power Indicator: green |
| Mirror | Bi-directional traffic mirroring supporting the basic port |
| Port | Support IEEE802.3x flow control (full duplex) Support for broadcast storm suppression based on port rate Support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps. Support port temperature protection settings Support port IEEE green Ethernet energy saving configuration |
| Layer 3 Function | L2+ network management function, Support IPV4/IPV6 management |
| VLAN | Support port based VLAN (4K), IEEE802.1q Support protocol based VLAN Support Voice VLAN Support for MAC address-based VLANs Support Access, Trunk, Hybrid three types of port configuration |
| Port Aggregation | Support LACP, Support static polymerization, Support the largest 8 aggregation groups; each aggregation group supports 8 ports |
| QoS | Support Diff-Serv QoS, Each port supports 8 output queues, Support 802.1p/DSCP priority mapping, Support queue scheduling mechanism (SP, WRR, SP+WRR), Support priority tag Mark/Remark, Support stream based packet filtering, Support for stream based redirection, Support flow based speed limit |
| DHCP | Support DHCP Client, Support DHCP Snooping |
| System Requirements | Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later, Cat5e or later Ethernet cable, TCP/ IP, network adapter and network operating system (Microsoft Windows, Linux or Mac OS X) installed on every computer in the network. |
| Power Supply Pin | Only support 1/2 (+), 3/6 (-) 4-core power supply |
| Max/Average Power Port | 30W per port |
| Power Consumption | Standby: <10W (NOT PoE); Full load: <250W (with PoE) |
| Operating Temperature | -40~ +85°C |
| Operating Humidity | 5%~90% RH Non condensing |
| Storage Temperature | -40~+85°C |
| Storage Humidity | 5%~95% RH Non condensing |
| Dimensions | 149.2mm (L) x 122mm (W) x 50mm (H) |
| Weight | <1.2Kg |
