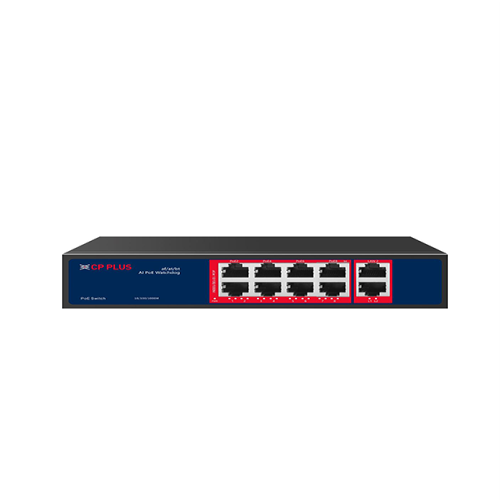

CP-ANW-GPU8G2-N12
- Networking standard: IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet
- Support 6KV Lightning and 8KV ESD Protection
- Support: 8 ports PoE + 2 ports Uplink
- PoE Power Budget : 120W
- Support: bt 60W High Power
- Support: AI Watchdog Function
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Network Standard | IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet |
| Network Port | PoE (1~6):10/100/1000Mbps PoE ports (RJ45), PoE (7~8):10/100/1000Mbps PoE ports (RJ45),Support bt 60W High Power, LAN(1~2):10/100/1000Mbps uplink ports (RJ45) |
| Bandwidth | 20 Gbps |
| MAC Address List | 8K |
| Transmission Distance | 120m |
| Transmission Rate | 2000Mbps Full Duplex; 10 or 100 or 1000 Mbps Half Duplex |
| Network Latency | (10 to 1000Mbps): ≥16μs (use the 64byte package size) |
| The Frame Filter & Transmis- | 14800pps the most for 10M port, 148800pps the most for 100M port, 1488000pps the most for 1000M port |
| Lightning Protection | 6KV, Per: IEC61000-4-5 |
| ESD Protection | 8KV, Per: IEC61000-4-2 |
| AI Watchdog | Port 1~8 |
| Power Input | AC 90~240V Total≤120W |
| Operating Temperature | -30°C ~60°C |
| Storage Temperature | -40°C ~70°C |
| Storage Humidity | 5%~90% (Non-condensing) |
| Operating Humidity | 10%~90% Non-condensing |
| Dimensions | 187mm x 139mm x 43mm |
| Weight | 1Kg |
