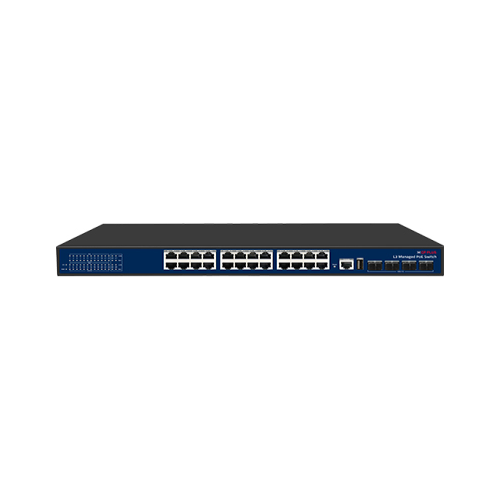

CP-DNW-GPM24F4-40-L3
- Supports IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard.
- Support Spanning Tree Protocol STP/RSTP/MSTP （ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM).
- Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN.
- Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection.
- Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standard.
- Support PoE management, PoE watchdog.
- L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, support IGMP Snooping v1/v2.
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Network Port | 24 x 10/100/1000Mbps PoE Port 4 x 10G SFP Port 1 x RJ45 Console Port 1 x USB Port |
| Network Protocol | IEEE 802.3: Ethernet MAC Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3ae: 10G Ethernet (optical fiber) IEEE 802.3az: Energy-efficient Ethernet IEEE 802.3ad: Standard method of performing link aggregation IEEE 802.3x: flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer 2 Qos/Cos protocol (multicast filtering function) related to traffic priority IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP |
| Switch Capacity | 128Gbps |
| DDR SDRAM | 128MB |
| Flash Memory | 16MB |
| Packet Buffer Memory | 12Mbit |
| Packet Forwarding Rate | 95.23Mpps |
| MAC Address | 16K |
| Jumbo Frame | 12K Bytes |
| VLANs | 4096 |
| MTBF | 100000 hours |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
| PWR (Power Indicator) | Light on: Powering Light off: No Power |
| SYS (System Indicator) | Flash: System booting Light on: System Running |
| Link/Act Indicator (Port 1-24) | Light on: Link is connected Flash: Data Transmitting Light off: Link is disconnected |
| PoE Indicator (Port 1-24) | Light on: PoE powering Light off: PoE not powering |
| Link Indicator (Port 25-28) | Light on: Link is connected Light off: Link is disconnected |
| Act Indicator (Port 25-28) | Flash: Data Transmitting Light off: No Data Transmitting |
| PoE Power Budget | Max. 440W |
| Power Input | 100-240VAC, 50/60Hz |
| Power Consumption | Product Consumption: 33W PoE Budget: 390W Total Power Consumption: 423W |
| Operating Temperature | -10 ~ 50°C |
| Working Humidity | 10%~90% (Non-condensing) |
| Storage Temperature | -40°C ~70°C |
| Output Voltage & Current | 52V 7.54A & 12V 4A dual output |
| Storage Humidity | 5%~90% (Non-condensing) |
| Dimensions | 440mm(W) x 280mm(D) x 44mm(H) |
| Net Weight | 4.03Kg |
