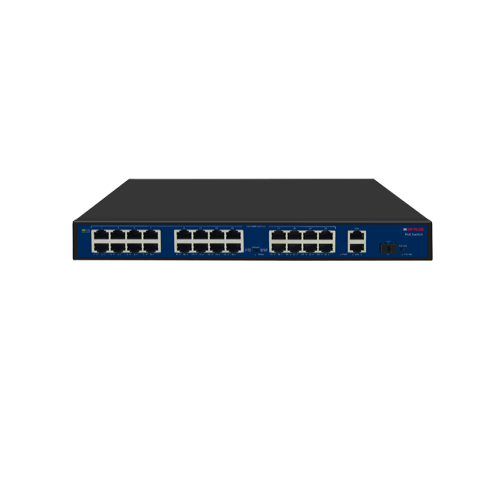

CP-DNW-HPU24G2F1-30-V2
- Port 1-24 support PoE, Max. 30W Output of Single PoE Port
- Support IEEE802.3/802.3u/802.3z/802.3ab/802.3x
- 2, 1000Mbps and 1 Gigabit SFP Uplink port, Transmission Distance: Default: 0-100m
- Easy and safe Installation
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Uplink Ports | 2, 1000Mbps & 1 Gigabit SFP Uplink port, Transmission Distance: Default: 0-100m |
| Network Standard | IEEE802.3/802.3u/802.3z/802.3ab/802.3x |
| Switch Capacity | 10.8 Gbps (non-blocking) |
| Packet Forwarding Rate | 8.035 Mpps |
| PoE Ports | 24, 100Mbps, RJ45 ports, Max. 30W Output of Single PoE Port |
| Network Port | 27 |
| Network Medium | 10Base-T : Cat3,4,5 or above UTP(≤100) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Buffer | 1.5Mb |
| MAC Address List | 2k |
| Transmission Distance | 0-100m/100Mbps or Port 9-24 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Standard | IEEE802.3af, IEEE802.3 |
| PoE Power Budget | 300W |
| DIP switch | Green light off: Normal mode Green light on: VLAN mode Green ligh flash slowly: Extend mode |
| VLAN | Support |
| Forwarding Mode | Store-and-forward |
| Ethernet Port Light | Green light off: Link is disconnected Green light on: Link is connected Green light flash: Data Transmitting |
| Power Source | Built-in Power Supply, Input: 110-264V |
| LEDs Indicator | Light on: Powering, Light off: No Power |
| Surge Protection | Common mode/RJ45 port: 4KV PoE Differential mode/RJ45 port: 2KV Common mode/Power board: 4KV Differential mode/Power board: 2KV |
| Power Consumption | <5W |
| Operating Temperature | -20°C ~ 45°C |
| Operating Humidity | 10%-95% , non-condensing |
| Storage Temperature | -45°C ~ 85°C |
| Color | Black |
| Dimensions | 320mm x 207mm x 45mm |
| Weight | 1.8Kg (without packaging) |
