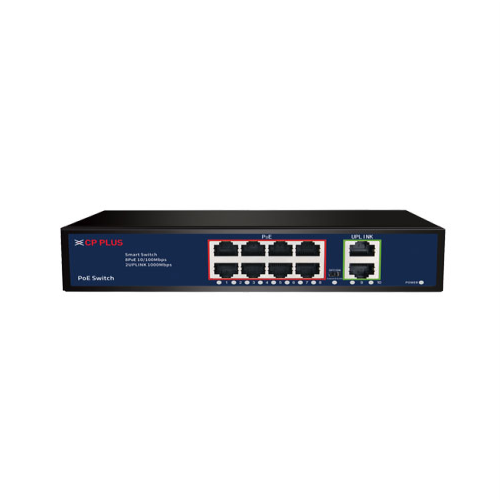

CP-DNW-HPU8G2-96-V3
- 8, 10/100Mbps; RJ45 Ports; Max. 30W Output of Single PoE Port
- IEEE802.3/802.3u/IEEE 802.3ab/802.3x
- 2, 1000Mbps; Transmission Distance: 0-100m
- Easy and safe installation: wall-mounting, desktop, Kensington security slot , Plug-and-play.
- Support ESD and Surge Protection
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Uplink Ports | 2, 1000Mbps; RJ45 Ports; Transmission Distance: Defaulf: 0-100m |
| PoE Ports | 8,10/100Mbps; RJ45 Ports; Max. 30W Output of Single PoE Port |
| Network Standard | IEEE802.3/802.3u/IEEE 802.3ab/802.3x |
| Switch Capacity | 5.6Gbps (non-blocking) |
| Packet Forwarding Rate | 4.166Mpps |
| Network Port | 10 |
| MAC Address List | 4K |
| Transmission Distance | 0-100m/100Mbps or Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Standard | IEEE802.3ab, IEEE802.3at |
| Packet Buffer | 448K |
| PoE Watchdog | Support |
| Surge Protection | Common mode/RJ45 port: 4KV ,Differential mode/RJ45 port: 2KV, Common mode/Power board: 2KV,Differential mode/Power board:2KV |
| ESD Protection | Air discharge: 8KV, Contact discharge: 6KV |
| VLAN | Support |
| Forwarding Mode | Store-and-forward |
| PWR (Power Indicator) | Light on: Powering ;Light off: No Power |
| Mode DIP | Green light off: Normal/Default mode ;Green light on: VLAN mode; Green ligh flash: Extend mode |
| RJ-45 ACT Indicator | Green light off: Link is disconnected ,Green light on: Link is connected ,Green light flash: Data Transmitting |
| PoE Power Supply | 1/2(+),3/6(-) |
| Operating Temperature | -10°C~-50°C |
| Humidity | -40°C~70°C |
| Storage Temperature | -40°C~70°C |
| PoE Power Budget | 96W |
| Power Source | Bult-in Power Supply, Input: 100-240V AC, 50/60Hz |
| Power Consumption | <5W |
| Dimensions | 200mm x 118mm x 44mm |
| Weight | 0.62kg（not include input cable & packaging) |
