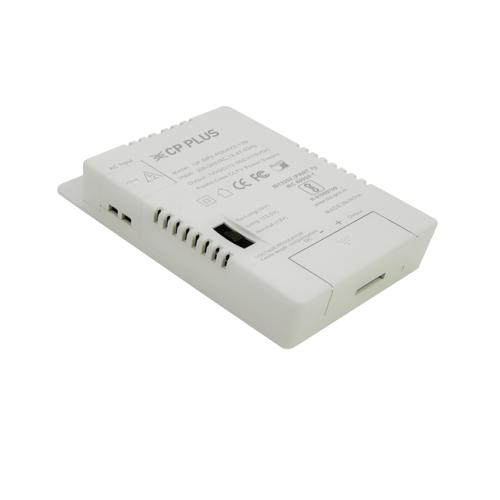

CP-DPS-PD04V3-12D
- 2 Output Terminals for Easy Installation.
- Short Circuit, Over Voltage and Over Current Protection
- Ac I/P & DC O/P Terminals Are Covered for Safety
- Power On Indicator
- Cable Compensation Switch
- Built-in EMI Filter to Nullify Interference
- 100% Full Load Burn-in Test
- Cooling by Free Air Convection
- Wall Mount Option Along with Desktop
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Input voltage | 200 ~ 240VAC |
| Input AC Frequency Range | 47 ~ 63Hz |
| Input Current (Typ.) | 0.5A/230VAC |
| Power Cord | 2 Pin (L & N) |
| Standby Power Consumption | ≤0.5W |
| Inrush Current (Typ.) | ≤40A@230VAC |
| Efficiency (Typ.) | 85% |
| Output voltage | 12V in Normal Mode |
| Output Current | 3.0A in Normal Mode |
| Output Current range | 0 ~ 3.0A in Normal Mode |
| Rated Power | 36W in Normal Mode |
| Ripple & Noise (max.) | ≤240mV |
| Line Regulation | 2% |
| Load Regulation | 3% |
| Power On Indicator | Support |
| Cable Compensation Switch | Support, 3 Modes (Normal, Long, Ex. Long) |
| No. of Output Ports | Single Port |
| short-circuit protection | Support |
| Dielectric Strength (Hi-pot) | 3.0KV |
| Insulation Resistance | 100MΩ@500VDC |
| Surge Immunity | 1.0KV |
| Operating Temperature | -10 ~ +45°C |
| Operating Humidity | 20 ~ 90% RH Non-condensing |
| Storage Temperature | -10 ~ +45°C |
| Storage Humidity | 10 ~ 95% RH |
| Dimension | 132.7mm x 77.7mm x 33.2mm |
| Weight | 0.144kg without Power Cord and Packing Box |
