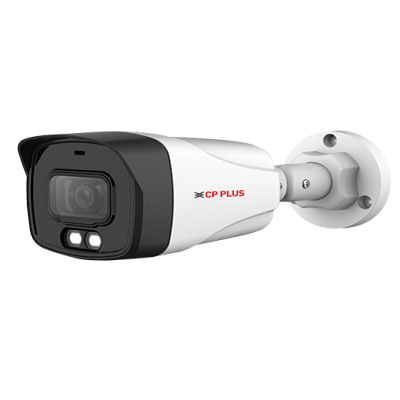

CP-GPC-TA50L5-SE
1/2.7″ 5MP PS CMOS Image Sensor (0.9407 cm)
Max 25/30fps@5MP
DWDR, 2D-NR, AWB, AGC, BLC, HLC
6mm fixed lens
Illumination Range of 50 Mtrs, IP67
CVI/CVBS/AHD/TVI switchable
24/7 color Imaging
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/2.7 |
| Minimum Illumination | 0.005 Lux/F1.6, 0 Lux white light on |
| BodyType | Bullet |
| Shutter Speed | PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
| Max Aperture | F1.6 |
| White Balance | Auto/Manual |
| Lens Type | Fixed |
| Lens | 6mm |
| Gain Control (AGC) | Auto/Manual |
| DORI Distance | 6mm: 124m(Detect), 49.6m(Observe), 24.8m(Recognize), 12.4m(Identify) |
| Angle of View | 6mm: 65° x 57° x 30° (diagonal × horizontal × vertical) |
| S/N Ratio | >65dB |
| Back Light Comp. | BLC/ HLC/ DWDR |
| Video Streaming | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960 |
| Privacy Mask | Off/on (8 area, rectangle) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Illumination Distance | IR Range of 50 Mtr. |
| Operating Temperature | -40°C ~ +60°C (+40°F ~ 140°F)/ <95% (non-condensation) |
| Power Source | 12V DC ±30% |
| Power Consumption | Max 3.1W (12V DC, White Light on) |
| Weatherproof Standard | IP67 |
| Dimension | 198.9 mm × 80.2 mm × 76.2 mm |
| Casing | Metal front cover + plastic main body + plastic bracket |
| Weight | 0.35kg |
