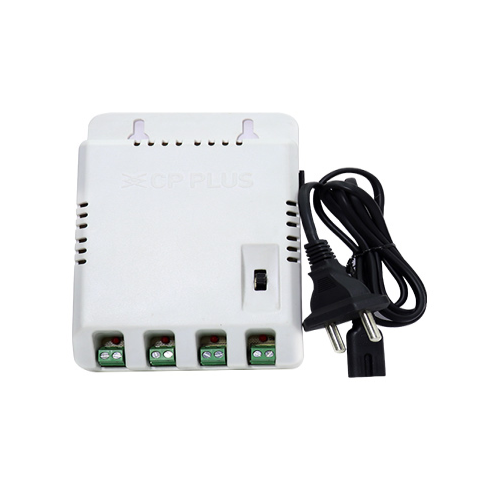

CP-LPS-PD04-12D
- EMC/EMI Standards
- Plastic ABS, fire protection
- Over Current/Voltage Protection; Short Circuit Protection; Over load protection
- LED indicator for power on
- With Power Cord
- For India Market only
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Input voltage | 150V~240V AC |
| Output Connector | Terminal Block Type |
| Output voltage | 12V DC |
| Current Range | 0-1A Each Channel |
| Voltage Adj. Range | 12V DC – 15V DC |
| Rated Power | 48W |
| Ripple & Noise (max.) | <200mV |
| Line Regulation | <3% at 150VAC-240VAC |
| Voltage Tolerance | 10% |
| Hold Up Time (Typ.) | 30ms max @ full load & 230Vac input turn of |
| Setup Rise time | 30mS max @ rated load, output voltage from 10% to 90%. |
| start time | 30mS max @ rated load, output voltage from 10% to 90%. |
| Load Regulation | <10% at 150Vac-240Vac |
| Linear modulate | SMPS (SMPS (Switch mode power supply) |
| Temperature coefficient | Max 75 degree |
| AC Current (Typ.) | 1.2A Max @ max 100-240Vac input & full load |
| Efficiency (Typ.) | 70% |
| Frequency Range | 50Hz-60Hz. Normal |
| Leakage Current | 0.008 A Max. |
| guard time | MAX 2Sec@ 150-240VAC at input & full load |
| override protection | Supported |
| Inrush Current (Typ.) | 50A max @ 240 Vac input & full load |
| overvoltage protection | Supported |
| short-circuit protection | Supported (AUTO RECOVERY) |
| Over Load | Supported |
| Over Current | Supported |
| Isolation Resistance | 50MΩ min at primary to secondary add 500Vdc test voltage |
| Withstand Voltage | Input (100 – 240)Vac/ Output (12 -15)Vdc |
| Working temperature | -10°C to +45°C |
| Store temperature | -40°C to +70°C |
| Working Humidity | 5% to 95% |
| Dimension | 154.7mm x 97.38mm x 32.90mm |
| Body Type | Plastics ABS |
| Weight | 219.1gm |
