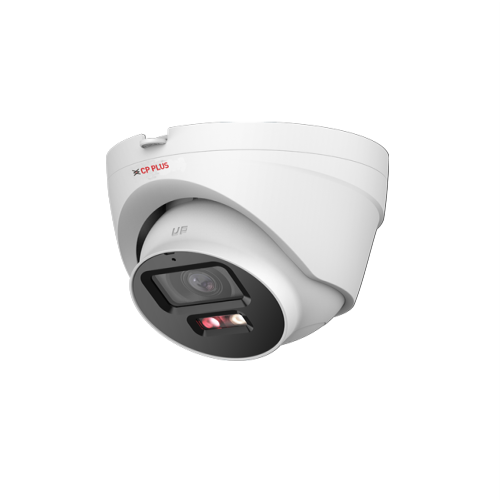

CP-UNC-DA21L3B-LQ

CP-UNC-DA21L3B-LQ

Rated 0 out of 5

0 Reviews

In stock

1/2.7″ 2MP PS CMOS Image Sensor (0.9407 Centimeters)

Max. 2MP (1920 × 1080)@1–25/30 fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

Support Built-in Mic, Built-in speaker

3.6mm fixed Lens

DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Image Sensor	1/2.7″ 2MP PS CMOS Image Sensor (0.9407 Centimeters)
Effective Pixels	1920 (H) × 1080 (V)
Minimum Illumination	0.001 lux@F1.4 (Color, 30 IRE), 0.001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,00
RAM	128 MB
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
ROM	128 MB
Gain Control (AGC)	Auto/Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Lens Mount	M12
Close Focus Distance	1.1 m
Day/Night	Auto(ICR)/Color/B/W
DORI Distance	Lens 3.6mm: 53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify)
S/N Ratio	>58dB
Back Light Compensation	BLC/ HLC/ DWDR
IR Control	Auto, Manual
IR Number	1 IR LED, 1 Warm light
IR	IR Range of 30 Mtr.
Warm Light	Warm Light Range of 30 Mtr.
Smart IR	Support
Smart Illumination	Support
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Stream Capability	Triple stream
Frame Rate	Main stream: 2MP (1920 × 1080)@1–25/30 fps Sub stream 1: 720P (1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Angle of view	3.6 mm: H: 86°, V: 46°, D: 103°
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 areas
Audio	Built-in Mic
Built-in Speaker	Support
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Video Format	PAL/NTSC
ROI	Support (4 areas)
Audio Compression	G.711a, G.711Mu, PCM,
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
OSD	Camera title, Date & Time
Ethernet	RJ-45 (10/100 Base-T)
SDK and API	Support
Iris Control	Fixed
Mirror Function	Support
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Alarm Event	Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Browser	IE, Chrome, Firefox
User/Host	6 (Total bandwidth: 36 M)
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 1.8 W (12 VDC), 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Weatherproof Standard	IP67
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95%(RH), non-condensing
Casing	Metal
Dimensions	100.9 mm × 109.9 mm
