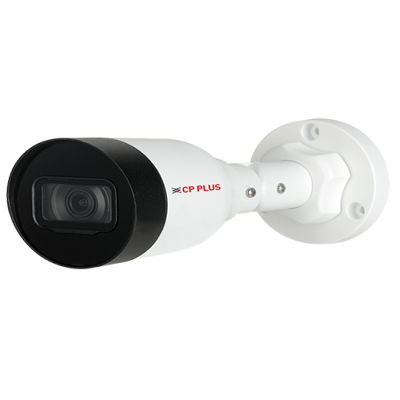

CP-UNC-TA41L3C-Q

CP-UNC-TA41L3C-Q

Rated 0 out of 5

0 Reviews

In stock

1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)

Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30f

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

DWDR, Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking

3.6mm fixed Lens

Support Built-in Mi

IR Range of 30 Mtr., IP67, PoE

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Image Sensor	1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
Effective Pixels	2688(H) × 1520(V)
Minimum Illumination	0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM	128 MB
ROM	128 MB
DORI Distance	Lens 3.6mm: 76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify)
Gain Control (AGC)	Auto, Manual
Max. Aperture	F2.0
Lens Mount	M1
Close Focus Distance	1.3 m
Lens	3.6mm fixed Lens
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream)
Angle of View	3.6 mm: H: 78°, V: 43°,
Back Light Compensation	BLC/ HLC/ DWDR
IR	IR Range of 30 Mtr.
Smart IR	Support
IR Number	1 IR LED
Resolution	4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)
Mirror Function	Support
Iris Control	Fixed
Day/Night	Auto(ICR)/Color/B/W
stream Capability	Triple stream
Frame Rate	Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
IR Control	Auto, Manual
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event video
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Video Format	PAL/NTSC
Privacy Mask	8 areas
OSD	Camera title, Date & Time
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Bit Rate Control	CBR/VBR
Human body Detection	Support the classification and accurate detection of human
Protocol	IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Ethernet	RJ-45 (10/100 Base-T)
Image Rotation	4MP only support 0°/180° 2MP & lower will support 0°/90°180°
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/ PoE (802.3af)
Power Consumption	Basic: 1.5 W (12 VDC), 1.9 W (PoE); Max. (H.265 + intelligence on + DWDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE)
User/Host	6 (Total bandwidth: 36 M)
Browser	IE, Chrome, Firefox
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%(RH), non-condensing
Storage Humidity	≤95%(RH), non-condensing
Dimension	162.6 mm × 70 mm × 70 mm
Casing	Metal + Plastic
