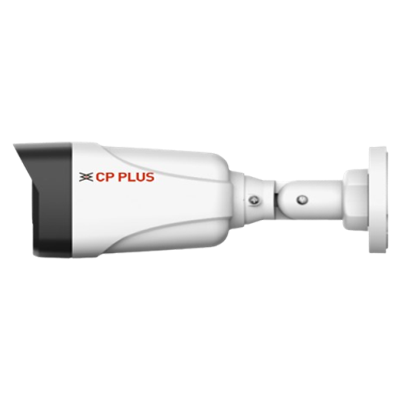

CP-UNC-TA41L6C-Q

CP-UNC-TA41L6C-Q

Rated 0 out of 5

0 Reviews

In stock

1/2.8″ 4MP PS CMOS Image Sensor (0.9071 centimeters)

Max. 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Triple stream

DWDR, Day/Night(ICR), 3D DNR, AWB, AGC, BLC, HLC

6mm Fixed Lens

Support Built-in Mic

IR Range of 60 Mtr., IP67, PoE

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Image Sensor	1/2.8
Minimum Illumination	0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)
Effective Pixels	2688 (H) × 1520 (V)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
ROM	128 MB
Close Focus Distance	3.2 m
Gain Control(AGC)	Auto, Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Lens Mount	M12
DORI Distance	124.0 m (Detect), 49.6 m (Observe), 24.8 m (Recognize), 12.4 m (Identify)
Video Format	PAL/NTSC
OSD	Camera title, Date & Time
Lens	6mm Fixed Lens
Angle of view	H: 49°, V: 26°, D: 57°
S/N Ratio	>56dB
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream)
Back Light Compensation	BLC/ HLC/ DWDR
Day/Night	Auto(ICR)/Color/B/W
IR	IR Range of 60 Mtr.
IR Number	4 IR LED
Smart IR	Support
Resolution	4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)
stream Capability	Triple stream
Frame Rate	Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Sub stream 1: 720P(1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Noise Reduction	2D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Mirror Function	Support
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Bit Rate Control	CBR/VBR
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Ethernet	RJ-45 (10/100 Base-T)
SDK and API	Support
Alarm Event	Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle ), Security exception
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Browser	IE, Chrome, Firefox
IR Control	Auto, Manual
Image Rotation	4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270°
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Iris Control	Fixed
User/Host	6 (Total bandwidth: 36 M)
Weatherproof Standard	IP67
Certificates	ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ DWDR + illuminator intensity): 5.3W (12 VDC), 6.8 W (PoE)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95%
Casing	Metal
Dimension	197.9 mm × 80.2 mm × 76.2 mm
Weight	310g
