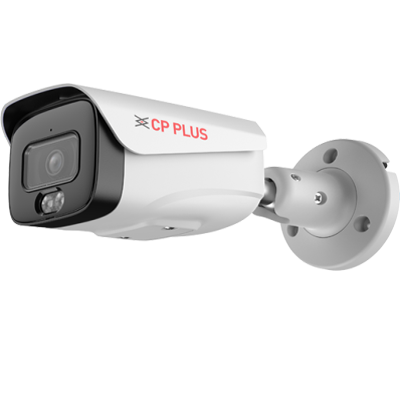

CP-UNC-TE41L5C-VMD-LQ
1/1.8” 4MP PS CMOS Image Sensor (1.411 centimeters)
Max. 4MP (2688 × 1520/2560 × 1440)@1-25/30fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Penta Stream
WDR (120dB), Day/Night (ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking
3.6 mm Fixed Lens
IR Range of 50 Mtr., Warm Light Range of 30 Mtr.
Micro SD Card, IP67, IK10, PoE, SMD
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/1.8” 4MP PS CMOS Image Sensor (1.411 centimeters) |
| Effective Pixels | 2688 (H) × 1520 (V) |
| Minimum Illumination | 0.001 lux@F1.4 (Color, 30 IRE), 0.00001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
| Electronic Shutter | Auto/Manual 1/3 s–1/100,00 |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–75°, Rotation: 0°–355° |
| RAM | 1 GB |
| ROM | 256 MB |
| Max. Aperture | F1.4 |
| Gain Control(AGC) | Auto |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Close Focus Distance | 1.5 m |
| DORI Distance | 67.6 m (Detect), 27.0 m (Observe), 13.5 m (Recognize), 6.8 m (Identify) |
| Lens | 3.6 mm |
| Video Format | PAL/NTSC |
| Back Light Compensation | BLC/ HLC/ WDR (120dB) |
| Stream Capability | Penta Stream |
| Angle of View | H: 87°, V: 49, D: 100° |
| IR | IR Range of 50 Mtr. |
| Warm Light | Warm Light Range of 30 Mtr. |
| S/N Ratio | >56 dB |
| Video Compression | Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 |
| Resolution | 4MP (2688 × 1520/2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 4MP (2688 × 1520/2560 × 1440)@1-25/30fps, 3MP (2304 × 1296)@1-25/30fps, 2MP (1920 × 1080)@1-50/60fps, 1.3MP (1280 × 960)@1-50/60fps, 720p (1280 × 720)@1- 50/60fps, D1 (704 × 576/704 × 480)@1-50/60fps Sub stream 1: D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)@1- 25/30 fps Sub stream 2: 2MP (1920 × 1080)@1-25/30 fps, 1.3MP (1280 × 960)@1-25/30 fps, 720p ((1280 × 720)@1-25/30 fps, D1 (704 × 576/704 × 480)@1-25/30 fps Sub stream 3: D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)@1- 25/30 fps Sub stream 4: D1 (704 × 576/ 704 × 480)@1fps |
| Noise Reduction | 3D NR |
| ROI | Support (4 areas) |
| Mirror Function | Support |
| Bit Rate Control | CBR/ VBR |
| Bit Rate | H.265: 12 kbps–11008 kbps, H.264: 32 kbps–16384 kbps |
| LDC | Support |
| Protocol | FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| Smart search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100 Enhancement Base-T) |
| Day/Night | Auto(ICR)/Color/B/W |
| User/Host | 20 Users |
| SMD | Support |
| IR Control | Auto, Manual |
| Smart IR | Support |
| OSD | Camera title, Date & Time |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, G.723, AAC |
| Audio Input | 1 Channel (RCA port) |
| Alarm Event | No SD card, SD card full, SD card error, Network disconnection, IP conflict, Motion detection, Video tampering, Tripwire, Intrusion, Scene changing, Audio detection, voltage detection, External alarm, SMD, Security except |
| Intelligent Scene Adaption (ISA) | Support |
| IR Number | 3 IR LED, 4 Warm Light |
| Intellicheck | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Alarm IN | 1 Channel in: wet contact, 5mA 3V–5V DC |
| Alarm Out | 1 Channel out: wet contact, 300mA 12V DC |
| Video Metadata | Support |
| Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
| Browser | Microsoft, Edge and Chrome |
| Certificates | ISO9001, CE, FCC and RoHS |
| Power Source | 12 VDC/PoE (802.3af)/PoE |
| Power Consumption | Basic: 3.9 W (12 VDC), 4.7 W (PoE), Max.: 6.6 W (12 VDC), 7.9 W (PoE) (H.265 + WDR + warm light + intelligence on) |
| Weatherproof Standard | IP67, |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Dimension | 89.1 mm × 111.7 mm |
| Weight | 528g |
