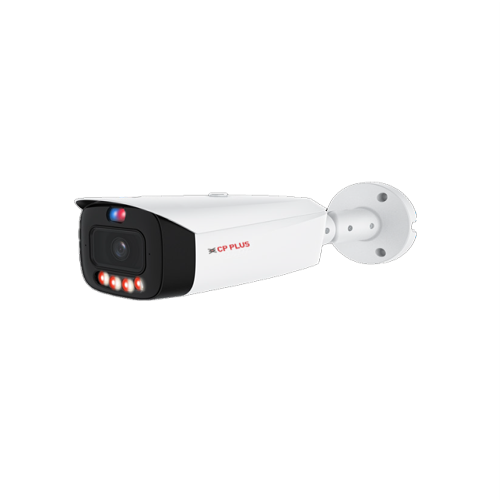

CP-UNC-TE41L5C-VMD-PRO

Rated 0 out of 5

0 Reviews

In stock

1/1.8” 4MP PS CMOS Image Sensor (1.411 centimeters)

Max. 4MP (2688 × 1520)@1 fps–25/30 fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

WDR (120dB), Day/Night (ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking

Support Penta Stream

3.6mm fixed lens (2.8mm Optional)

IR Range of 50 Mtr., Warm Light Range of 50 Mtr.

Support Built-in Mic

Micro SD Card, IP67, PoE, SMD 4.0

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Image Sensor	1/1.8” 4MP PS CMOS Image Sensor (1.411 centimeters)
Effective Pixels	2688 (H) × 1520 (V)
Minimum Illumination	0.0005 Lux@F1.0 (Color, 30IRE), 0.0004 Lux@F1.0 (B/W, 30IRE), 0 lux (IR on)
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
ROM	256 GB
RAM	1 GB
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
Gain Control(AGC)	Auto/ Manual
Lens Type	Fixed-focal
Max. Aperture	F1.0
Lens Mount	M14
Close Focus Distance	3.6 mm: 3.5 m, 2.8 mm: 1.7 m
Lens	3.6mm Fixed Lens (2.8mm Optional)
S/N Ratio	>58 dB
IR Number	4 (Multi-core (IR + warm) light)
IR	IR Range of 50 Mtr.
Back Light Compensation	BLC/ HLC/ WDR (120 dB)
Angle of View	3.6 mm: H: 95°, V: 51°, D: 114°; 2.8 mm: H: 111°, V: 60°, D: 135°
Resolution	4MP (2688 × 1520/ 2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Day/Night	Auto(ICR)/Color/B/W
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Stream Capability	Penta Stream
Frame Rate	Main stream: 4MP (2688 × 1520)@1 fps–25/30 fps Sub stream 1: 2MP (1920 × 1080)@1 fps–25/30 fps; Sub stream 2: D1@1 fps–25/30 fps; Sub stream 3: D1@1-25/30fps; Sub stream 4: D1@1fps
Noise Reduction	3D NR
IVS (Optional)	Intrusion, tripwire, Face detection, video Metadata, people
Privacy Mask	4 Areas
ROI	Support (4 areas)
Built-in Speaker	Support
Video Compression	Instastream, H.265, H.264+, H.264+, H.264H, H.264B, MJPEG (Only supported by the sub stream)
AI Coding	AI H.265 (Compression rate ≥25%), AI H.264 (Compression rate ≥25%)
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V1/ V2/ V3/, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Ethernet	RJ-45 (10/100 Base-T)
Smart IR	Support
Alarm Event	No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Scene changing, Audio detection, Voltage detection, External alarm, SMD, Security exception
SMD	SMD 3.0
Mirror Function	Support
OSD Menu	Camera title, Date & Time
IR Control	Auto, Manual
Iris Control	Fixed
AI SSA	Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Intelligent Scene Adaption (ISA)	Support
Browser	IE: IE11, Chrome, Firefox
User/Host	20 (Total bandwidth: 64 M)
Audio Input	1 Channel (RCA port)
Audio Compression	PCM, G.711a, G.711Mu, G.726, G.723
Audio Output	2 Channel (RCA port)
Alarm IN	1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Out	1 channel out: wet contact, 300 mA 12 VDC
Bit Rate	H.265: 3 kbps–16384 kbps, H.264: 3 kbps–16384 kbps
Bit Rate Control	VBR, CBR, ABR
Storage	SFTP, NAS, Mirco SD card (Max. 512GB)
Certificates	ISO9001, CE, FCC and RoHS
Power Source	12 VDC/PoE+ (802.3at)
Power Consumption	Basic: 4.3 W (12 VDC), 6.2 W (PoE) Max. (H.265 + WDR + warm light + siren and light active deterrence + intelligence on):11.8 W (12 VDC), 15.1 W (PoE)
Weatherproof Standard	IP67
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Casing	Metal +
Dimension	288.4 mm × 94.4 mm × 84.7 mm
Weight	1000g
