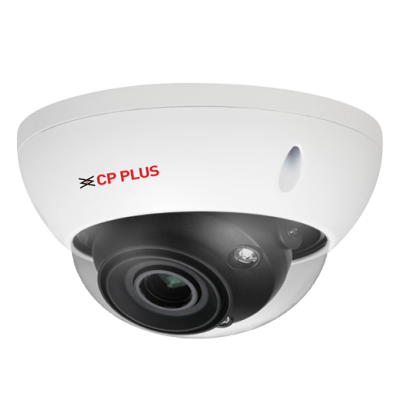

CP-UNC-VC41ZL5C-VMD-Q

Rated 0 out of 5

0 Reviews

In stock

1/2.7″ 4MP PS CMOS Image Sensor (0.9407 Centimeters)

Max. 4MP (2688 × 1520)@1–20 fps/ (2560 x 1440)@1-25/30 fps

Instastream, H.265, H.264, H.264H, H.264B, MJPEG

Support Quad Stream

WDR(120dB), Day/Night(ICR), 3D NR, ROI, BLC, HLC, AWB, AGC

2.7mm–13.5mm Motorized Lens

IR Range of 50 Mtr.

Support Starlight Technology

Micro SD Card, IP67, IK10, PoE

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Image Sensor	1/2.7
Effective Pixels	2688 (H) × 1520 (V)
Minimum Illumination	0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–355°, Tilt: 0°–75°, Rotation: 0°–355°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
ROM	128 MB
RAM	128 MB
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
Lens	2.7 mm–13.5 mm
Max. Aperture	F1.4
Close Focus Distance	0.8 m
Lens Mount	M14
DORI Distance	Lens W: 64.0 m (Detect), 25.6 m (Observe), 12.8 m (Recognize), 6.4 m (Identify) Lens T: 210.0 m (Detect), 84.0 m (Observe), 42.0 m (Recognize), 21.0 m (Identify)
Lens Type	Motorized Vari-focal
Gain Control (AGC)	Auto, Manual
IR Control	Auto, Manual
IR Number	2 IR LED
IR	IR Range of 50 Mtr.
Back Light Compensation	BLC/ HLC/ WDR(120dB)
Angle of view	H: 104°–29°, V: 54°–16°, D: 125°–34°
S/N Ratio	>58 dB
Day/Night	Auto(ICR)/Color/B/W
Resolution	4MP (2688 × 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)
Stream Capability	Quad Stream
Frame Rate	Main stream: 4MP (2688 × 1520)@1–20 fps/ (2560 x 1440)@1-25/30 fps; Sub stream 1: 720p/D1/VAG/CIF@25/30fps, Sub stream 2: D1/VGA/CIF/@25/30fps; Sub stream 3: D1/VGA/CIF@1fps
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Mirror Function	Support
Iris Control	Fixed
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
IVS (Optional)	Intrusion, Tripwire (the two functions support the classification and accurate detection of vehicle and human)
Video Format	PAL/NTSC
Privacy Mask	4 areas
OSD	Camera title, Date & Time
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
SDK and API	Support
Ethernet	RJ-45 (10/100 Base-T)
Alarm Event	No SD card, SD card full, SD card error, Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Tripwire, Intrusion, Audio detection, Voltage detection, Defocus detection, External alarm, SMD, Security exception
Audio Compression	G.711a, G.711Mu, G.726, PCM, AAC
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
User/ Host	6 (Total bandwidth: 36 M)
Browser	IE, Chrome, Firefox
Weatherproof Standard	IP67, IK1
Storage	SFTP, NAS, Mirco SD card (Max. 512GB)
Certificates	ISO9001, CE, FCC and RoHS
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.3 W (12 VDC), 3.2 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 6.5 W (12 VDC), 7.7 W (PoE)
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40°F to +140°F)
Casing	Metal
Dimensions	93.4 mm × 122 mm
Weight	520 g
