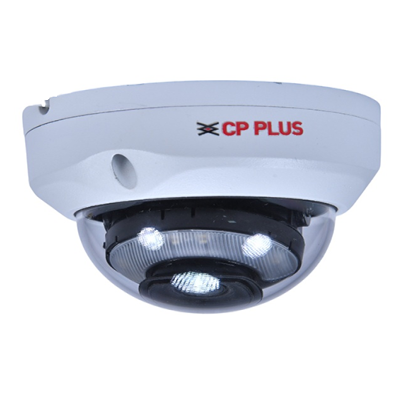

CP-UNC-VC81L5C-VMD-LQ

Rated 0 out of 5

0 Reviews

In stock

1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters)

Max. 8MP (3840 × 2160)@1–20 fps

Instastream, H.265, H.264,H.264H, H.264B, MJPEG

Support Quad Stream

WDR(120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking

IR Range of 50 Mtr., Warm Light Range of 30 Mtr.

3.6mm fixed Lens (2.8mm optional)

Support Starlight Technology

Micro SD Card, PoE, IP67, IK10

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Image Sensor	1/2.7” 8MP PS CMOS Image Sensor (0.9407 centimeters)
Effective Pixels	3840 (H) × 2160 (V)
Minimum Illumination	0.001 lux@F1.4 (Color, 30 IRE), 0.001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM	256 MB
DORI Distance	Lens 3.6 mm: 98.7 m (Detect), 39.5 m (Observe), 19.7 m (Recognize), 9.9 m (Identify) Lens 2.8 mm: 84.8 m (Detect), 33.9 m (Observe), 17.0 m (Recognize), 8.5 m (Identify)
Gain Control(AGC)	Auto/ Manual
Lens Type	Fixed-focal
Max. Aperture	F1.4
Close Focus Distance	3.6 mm: 1.9 m, 2.8 mm: 1.5 m
Lens	3.6mm Lens (2.8mm Optional)
Lens Mount	M12
IR Control	Auto, Manual
IR Number	3 IR LED, 4 Warm Light
IR	IR Range of 50 Mtr.
S/N Ratio	>56 dB
Back Light Compensation	BLC/ HLC/ WDR(120dB)
Angle of View	3.6 mm: H: 86°, V: 49°, D: 100°; 2.8 mm: H: 110°, V: 58°, D: 132°
Smart IR	Support
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream)
Day/Night	Auto(ICR)/Color/B/W
Mirror Function	Support
Noise Reduction	3D NR
Resolution	8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728/2880 × 1620), 4MP (2688 × 1520), 3MP (2048 × 1536/ 2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240)
stream Capability	Quad Stream
Frame Rate	Main stream: 8MP (3840 × 2160)@1–20 fps/ 4MP (2688×1520)@1–25/30 fps Sub stream 1: D1@1–25/30 fps, Sub stream 2: D1@1–25/30 fps, Sub stream 3: D1@1fps
IVS (Optional)	Intrusion, Tripwire (the two functions support the classification and accurate detection of vehicle and human)
Video Format	PAL/NTSC
Privacy Mask	8 areas
Iris Control	Fixed
Audio	Built-in Mic
OSD	Camera title, Date & Time
Alarm IN	1 Channel in: 5 mA 3–5 VDC
Alarm Out	2 Channel out: 300 mA 12 VDC
Bit Rate	H.265: 3 kbps–8192 kbps, H.264: 3 kbps–8192 kbps
Bit Rate Control	CBR/ VBR
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast,
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Audio Output	1 Channel (RCA port)
Ethernet	RJ-45 (10/100 Base-T)
Storage	SFTP, NAS, Mirco SD card (Max. 512GB)
Browser	IE: IE11, Chrome, Firefox
User/Host	20 (Total bandwidth: 48 M)
Weatherproof Standard	IP67 & IK10
Certificates	ISO9001, CE, FCC and RoHS
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 2.6 W (12 VDC), 3.3 W (PoE) Max.: 6.9 W (12 VDC), 8.3 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95% (RH), non-condensing
Dimension	81.0 mm × 109.9 mm
Weight	360g
