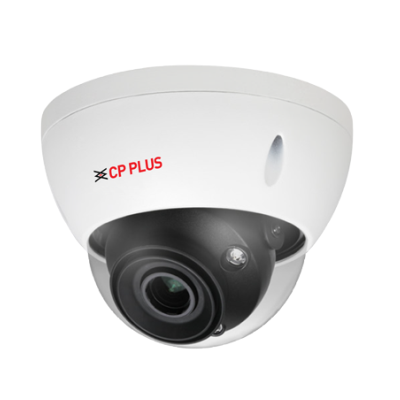

Product details
| Image Sensor | 1/2.8” 2MP PS CMOS Image Sensor (0.9071 Centimeter) |
| Minimum Illumination | 0.006 Lux@F1.6(Color,30IRE), 0.0006 Lux@F1.6(B/W,30IRE) 0 lux (IR on) |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–65°, Rotation: 0°–355° |
| RAM | 512 MB |
| ROM | 128 MB |
| White Balance | Auto, natural, street lamp, outdoor, manual, regional custom |
| Lens | 2.7mm~13.5mm |
| Gain Control(AGC) | Auto |
| Lens Type | Motorized |
| Max. Aperture | F1.5 |
| Lens Mount | M14 |
| Close Focus Distance | 0.8 Mtr. |
| DORI Distance | W: 44.1 Mtr. (Detect), 17.7 Mtr. (Observe), 8.8 Mtr. (Recognize), 4.4 Mtr.(Identify) T: 144.8 Mtr. (Detect), 57.9Mtr. (Observe), 29.0Mtr. (Recognize), 14.5 Mtr. (Identify) |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Angle of view | H: 109°–30°, V: 56°–17°, D: 131°–35° |
| Stream Capability | Quad Stream |
| Video Format | PAL/NTSC |
| Video Compression | Instastream, H.264+, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| Resolution | 2MP(1920 × 1080), 1.3MP(1280 × 960), 1MP(1280 × 720), D1(704 × 576/ 704 × 480), VGA(640 × 480), CIF(352 × 288/ 352 × 240) |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 3 kbps–6144 kbps, H.265: 3 kbps–6144 kbps |
| Noise Reduction | 3D DNR |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Motion Detection | OFF/ON (4 Areas, Rectangular) |
| Privacy Mask | 4 Area |
| ROI | Support (4 Areas) |
| Audio Output | 1 Channel (RCA port) |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G.722.1 |
| Audio | Built-in Mic |
| Alarm IN | 1 channels in: 5mA 3V–5V DC |
| Alarm Out | 1 channel out: 300mA 12V DC |
| OSD | Camera title, Date & Time |
| Protocol | SFTP, IPv6, IPv4, DNS, RTCP, NTP, RTP, HTTP, HTTPS, SNMP V1/V2/V3, TCP/IP, PPPoE, UPnP, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS,ONVIF (Profile S,Profile G,Profile T), unicast, Multicast |
| IVS (Optional) | Tripwire, Intrusion, Object Abandon/ Missing, SMD, Face Detection |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100Base-T) |
| Day/Night | Auto(ICR)/Color/B/W |
| User/Host | 20 (Total bandwidth: 80 Mbps) |
| Browser | Microsoft Edge and Chrome |
| Mirror Function | Support |
| Storage | SFTP, Micro SD card (support max. 512 GB), NAS |
| Frame Rate | Main stream: 2MP/1.3MP/1MP/D1 @(1-25/30fps) Sub stream 1: D1/VGA/CIF@(1-25/30fps) Sub stream 2: 2MP/1.3MP/1MP/D1@(1-25/30fps) Sub stream 3: D1/VGA/CIF@(1-25/30fps) |
| IR Distance | 40 Mtr. (IR) |
| IR Number | 3 (IR LED) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
| Certificates | MTBF Certificate from STQC, EMI/EMC, ISO9001, CE, FCC and RoHS, BIS, STQC approved compliance report |
| Weatherproof Standard | IP67 |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% RH, non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% RH, non-condensing |
| Power Source | 12 VDC/24 VAC/PoE (802.3af) |
| Power Consumption | Basic: 1.6 W (12 VDC), 1.9 W (24 VAC), 3.1 W (PoE) Max. (H.265 + WDR + Intelligence on + IR on: 7.9 W (12 VDC), 9.5 W (24 VAC), 9.9W (PoE) |
| Dimension | 159.1 mm × 118.1 mm |
| Weight | 0.91 kg |
