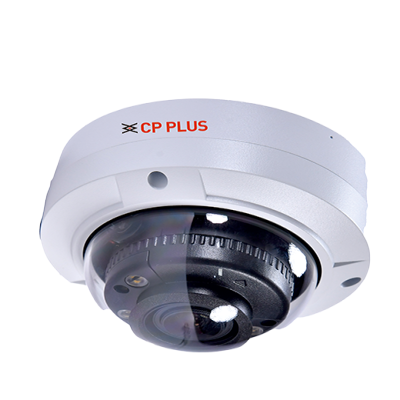

CP-UNC-VE81ZL5C-VMD-LQ
1/1.8″ 8MP PS CMOS Image Sensor (1.411 centimeters)
Max. 8MP (3840 × 2160)@1–25/30 fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Penta Stream
WDR(120dB), Day/Night(ICR), 3D NR, ROI, Defog, BLC, HLC, AWB, AGC
2.7mm~12mm Motorized Lens
IR Range of 50 Mtr., Warm Light Range of 50 Mtr.
Support Built in Mic
Micro SD, IP67, IK10, PoE
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Image Sensor | 1/1.8 |
| Effective Pixels | 3840(H) × 2160 (V) |
| Minimum Illumination | 0.004 lux@F1.8 (Color, 30 IRE), 0.0005 lux@F1.8 (B/W, 30 IRE), 0 lux (IR on) |
| Angle Adjustment | Pan: 0°–355°, Tilt: 0°–80°, Rotation: 0°–355° |
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| White Balance | Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
| RAM | 1 GB |
| ROM | 1 GB |
| Close Focus Distance | 0.1 m |
| Gain Control (AGC) | Auto |
| Lens Type | Motorized vari-focal |
| Max. Aperture | F1.8 |
| Lens Mount | M14 |
| DORI Distance | Lens W: 83.4 Mtr. (Detect), 33.4 Mtr. (Observe), 16.7 Mtr. (Recognize), 8.3 Mtr. (Identify) Lens T: 189.6 Mtr. (Detect), 75.8 Mtr. (Observe), 37.9 Mtr. (Recognize), 19.0 Mtr. (Identify) |
| Lens | 2.7mm~12mm |
| S/N Ratio | >56 dB |
| Back Light Compensation | BLC/ HLC/ WDR(120dB) |
| IR Number | 4 Multi-core (IR + warm) light |
| IR Distance | IR Range of 50 Mtr. |
| Angle of view | H: 113°–47°, V: 60°–26°, D: 133°–53° |
| Day/Night | Auto(ICR)/Color/B/W |
| Iris Control | Auto |
| Noise Reduction | 3D NR |
| Stream Capability | Penta Stream |
| Frame Rate | Main stream: 8MP (3840 × 2160)@1–25/30 fps Sub stream 1: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps Sub stream 2: 2MP (1920 × 1080)@1–25/30 fps Sub stream 3: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps Sub stream 4: D1 (704 × 576)/ (704 × 480)@1fps |
| Video Compression | Instastream, H.265, H.264+, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
| AI Coding | AI H.265, AI H.264 |
| Resolution | 8MP (3840 × 2160), 6MP (3200 × 1800), 5MP (3072 × 1728), 4MP (2688 × 1520/ 2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| IVS (Optional) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), Smart abandoned object, Smart missing object |
| Video Format | PAL/NTSC |
| Privacy Mask | 4 areas |
| ROI | Support (4 Areas) |
| OSD | Camera title, Date & Time |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265: 3 kbps–16384 kbps, H.264: 3 kbps–16384 kbps |
| Protocol | SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
| SMD | SMD 4.0 |
| Mirror Function | Support |
| IR Control | Auto, Zoomprio, Manual |
| Audio | Built-in Mic |
| IntelliSearch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4MP (2688 × 1520) resolution and lower) |
| Intelligent Scene Adaption (ISA) | Support |
| Audio Compression | G.711a, G.711Mu, PCM, G.726, |
| Audio Input | 1 Channel (RCA port) |
| Audio Output | 1 Channel (RCA port) |
| Alarm IN | 2 channels in: wet contact, 5mA 3V–5V DC |
| Alarm Out | 2 channel out: wet contact, 300mA 12V DC |
| People Counting | Tripwire people counting, Generating and exporting report (Day/Week/Month/Year), People counting in area and queue management, Generating and exporting report (Day/Week/ Month), 4 rules can be set for tripwire, People counting in area and queue management |
| Heat Map | Support |
| Video Metadata | Motor vehicle, Non-motor vehicle, Face, Human body detection, Track, Snapshot, Snapshot optimization, Optimal face snapshot upload. Motor vehicle attributes: Vehicle type, Vehicle color, Vehicle logo and other attributes : Seatbelt, Smoking, Calling. Non-motor vehicle attributes: Type, Color, Number of people, Top type and color, Hat. Human body attributes: Gender, Top/bottom type and color, Bag, Hat and umbrella. Face attributes: Gender, Age, Expressions, Glasses, Face mask and beard. |
| Smart Sound Detection | Support |
| AI ISA | Support |
| SDK and API | Support |
| Ethernet | RJ-45 (10/100 Enhancement Base-T) |
| User/ Host | 20 (Total bandwidth: 80 M) |
| Browser | IE, Chrome, Firefox |
| Storage | SFTP, NAS, Mirco SD card (Max. 512GB) |
| Weatherproof Standard | IP67, IK10 |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart |
| Certificates | ISO9001, CE, FCC and RoHS |
| Power Source | 12 VDC/PoE (802.3af) power supply, DC12V output |
| Power Consumption | Basic: 3.7 W (12 VDC); 5.3 W (PoE); Max.: 9.3W (12 VDC); 11.5 W (PoE) (H.265 + WDR + warm light + intelligence on) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Dimension | 94.0 mm × 122.0 mm |
| Weight | 560g |
