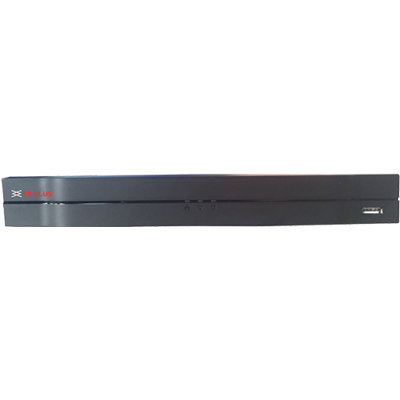

CP-UNR-104F1-P4
Support 4 channel IP camera input
Max 80Mbps Network Bandwidth
Instastream/H.265/Smart H.264+/H.264 codec decoding
Up to 8MP resolution preview and playback
Support 4 PoE Ports
Support 1 SATA HDDs up to 8TB Each, 2 USB Ports (USB2.0)
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
Support Multi-brand network cameras
ONVIF Version conformance
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade embedded processor |
| IP Camera Input | 4 channel |
| Operating System | Embedded LINUX |
| RCA Input/ RCA Output | 1 Channel Input/ 1 Channel output |
| User Interface | Web/operating in local GUI |
| Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| Video Compression | Instastream/H.265/Smart H.264+/H.264 |
| Audio Compression | PCM/G711A/G711U/G726/AAC |
| Decoding Capability | 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS) |
| Resolution | 5MP/4MP/3MP/1080P/720P/D1/CIF |
| Storage | Local HDD & Network |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Video Display Split | 1/4 |
| Multi-channel Playback | Up to 4 Channel |
| Playback Function | Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/of |
| Alarm Linkage | Video recording, snapshot, log, preset, tour |
| Hard Disk | 1 SATA 2.0, up to 8TB Each |
| Backup Mode | USB Device |
| Interface Ports | 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 ) |
| Smart Phone | iPhone, iPad, Android Phone |
| Ethernet | 1 RJ-45 Port (10/100Mbps) |
| PoE Ports | 4 RJ–45 ports with PoE power supply (10/1000 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, InstaOn, ONVIF (profile T/profile S/profile G), RTSP, CGI, SDK |
| Power Supply | DC48V/53V, 1.25A |
| Power Consumption | Total output of NVR is <10W (Without HDD), Total output power of PoE is 36W, the maximum output power of a single port is 25.5W |
| Operating Temperature | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | 0°C to 40°C (+32°F to +104°F) |
| Operating Humidity | 10%~93% |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000m |
| Dimension | 260 mm×225 mm×47.6 mm (W × L × H) |
| Weight | 0.84kg (without HDD) |
