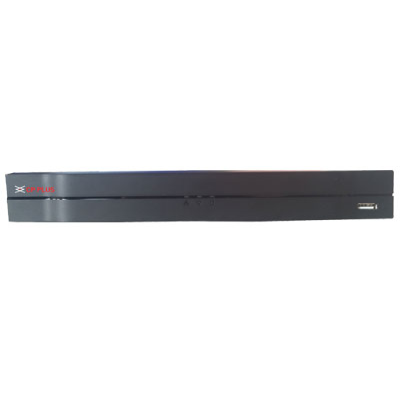

CP-UNR-108F1-P8
Support 8 channel IP camera input
Instastream/H.265/Smart H.264+/H.264 codec decoding
Up to 8MP resolution preview and playback
Max 80Mbps Network Bandwidth
Support 1 SATA HDDs up to 8TB Each, 2 USB Ports (USB2.0)
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
Support Multi-brand network cameras
ONVIF Version conformance
Support 8 PoE Ports
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
*Only for Middle East/ Africa/ EU Region
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade embedded processor |
| Operating System | Embedded LINUX |
| User Interface | Web/operating in local GUI |
| Video Output | 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P |
| IP Camera Input | 8 channel |
| Video Resolution | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Video Recording | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Video Display Split | 1/4/8/9 |
| Bandwidth Incoming | 80 Mbps |
| Video Compression | H.265/Smart H.264+/H.264 |
| Channel | 8 |
| Motion Detection | Supports |
| Decoding Capability | 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS) 8–ch@720P(30FPS) |
| Alarm Linkage | Video recording, snapshot, log, preset, tour |
| Video Loss | Supports |
| General Alarm | Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
| Smart Phone | iPhone, iPad, Android Phone |
| Anomaly Alarm | Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
| Audio Compression | PCM/G711A/G711U/G726/AAC |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Hard Disk | 1 SATA 2.0, up to 8TB Each. The maximum HDD capacity varies with environment temperature |
| Recording Mode | Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording |
| Backup Mode | USB Device |
| Playback | Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off |
| Ethernet | 1 RJ-45 port (10/100Mbps) |
| Interface Ports | 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 ) |
| PoE | 8 RJ–45 ports with PoE power supply (10/100 Mbps) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK |
| Power Supply | DC48V/53V, 2A/1.8A |
| Power Consumption | Total output of NVR is <10W (Without HDD) Total output power of PoE is 72W, the maximum output power of a single port is 25.5W |
| Working Temp | -10°C to 45°C (+34°F to +113°F) |
| Dimension | 260 mm×225 mm×47.6 mm (W × L × H) |
| Working Humidity | 10%~93% |
| Storage Temperature | 0°C to 40°C (+32°F to +104°F) |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000m |
| Weight | 0.84kg (without HDD) |
