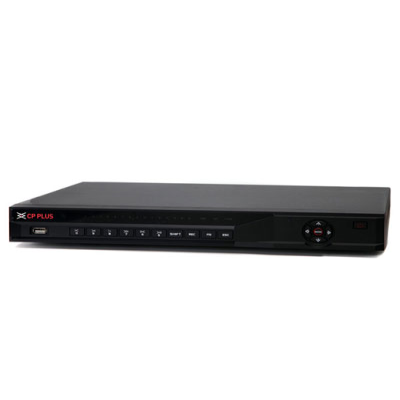

CP-UNR-208F2-I2

CP-UNR-208F2-I2

Rated 0 out of 5

0 Reviews

In stock

8 Channel IP video access

Intelli Code/ H.265/Smart H.264+ /H.264/MJPEG

Max. decoding capability: 6 × 1080p@30fps. Supports adaptive decoding

1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images

AI by camera: Face detection and recognition, perimeter protection and SMD

Support 2 SATA HDDs up to 10TB Each, 2 USB Ports

Support Multi-brand network cameras

Mobile Software: iCMOB, gCMOB

CMS Software: KVMS Pro

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Processor	Industrial-grade embedded micro-processor
Operating System	Embedded LINUX
IP Camera Input	8 channel
User Interface	Web; local GUI
Video Output	1 × VGA, 1 × HDMI (simultaneous)
Resolution	12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720P; D1
Video Compression	Intelli Code/H.265/Smart H.264+/H.264/MJPEG
Video Display Split	1/4/8/9
Audio Compression	PCM; G.711A; G.711U; G.726
Decoding Capability	AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3- channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4- channel 1080p@30 fps
Audio Output	1 channel
Audio Input	1 channel
Camera Blank	Supports
Motion Detection	MD Zones: 396 (22 × 18)
Video Loss	Supports
Alarm Linkage	Record; snapshot; buzzer; log; preset; email; tour
AI Search	Face detection; face recognition; perimeter protection; SMD
General Alarm	Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm
Smart Phone	iPhone, iPad, Android Phone
Anomaly Alarm	Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception
Face	6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard
Hard Disk	2 SATA III ports, up to 10TB for a single HDD. The maximum HDD capacity varies with environment temperature
Recording Mode	Manual record; alarm recordings; motion detection recordings; scheduled recordings
Backup Mode	USB device
Playback	Play; pause; stop; fast forward; fast backward; rewind; play by frame, Full screen; backup (cut/file) ; partially enlarge; audio on/off
Ethernet	1 RJ-45 10/100/1000 Mbps
Interface Ports	2 USB Ports (1 × front USB2.0; 1 × back USB2.0)
Protocols	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search; RTSP; InstaOn; Auto Registration; ONVIF (profile T; profile S; profile G); CGI; SDK
Power Supply	DC 12V/4A
Power Consumption	Total output of NVR is ≤ 10 W (without HDD)
Working Temp	-10°C to 55°C (+14°F to +113°F)
Dimension	375 mm × 284.3 mm × 53 mm (W × L × H)
Operating Altitude	3000 m
Weight	1.51 kg
