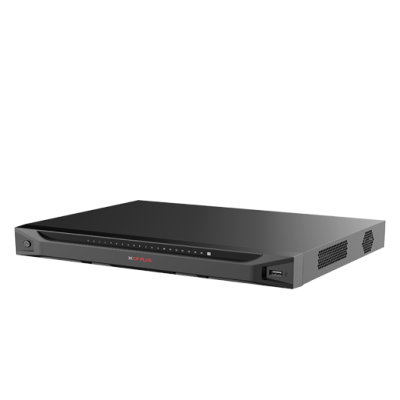

CP-UNR-4K2162-V3
- Up to 16 Channel IP Camera input
- Instastream, H.265, H.264+, H.264, MJPEG
- AI by Recorder: Support 4 channel SMD
- AI by Camera: Support perimeter protection and SMD
- Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth
- Support 2 SATA HDDs up to 20TB, 2 USB ports(2.0)
- HDMI / VGA simultaneous video output
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro Lite
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 channel |
| User Interface | Web, Local GUI |
| AI by Recorder | SMD |
| AI by Camera | Perimeter protection, SMD |
| Perimeter Performance of AI by Camera | All channels (4 targets/s) |
| Video Output | 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Compression | H.265, H.264+, H.264, MJPEG |
| Encode Strategy | Instastream |
| Decoding Capability | AI disabled: 1 channel 12 MP@30 fps, 1 channel 8 MP@30 fps, 2 channel 6 MP@30 fps, 2 channel 5 MP@30 fps, 3 channel 4 MP@30 fps, 6 channel 1080p@30 fps AI enabled: 1 channel 8 MP@30 fps, 1 channel 6 MP@30 fps, 1 channel 5 MP@30 fps, 2 channel 4 MP@30 fps, 4 channel 1080p@30 fps |
| Video Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 2MP, 720p, 960p, D1, CIF, QCIF |
| Video Display Split | 1/4/8/9/16 |
| SMD Plus by NVR | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (8 targets/s) |
| Network Bandwidth | AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, InstaOn, Auto Registration, ONVIF 23.12(Profile T, Profile S, Profile G), CGI, SDK |
| Abnormality Alarm | Error (No disk, Disk error, Low space, Low quota space, Network disconnection, IP conflict, MAC conflict), Video loss, Video tampering, Camera offline |
| Intelligent Alarm | Perimeter protection; SMD+ |
| General Alarm | Motion detection, Camera external alarm, PIR alarm |
| Alarm Linkage | Recording, Snapshot, Buzzer, Log, Preset, Email, Tour |
| Audio Input | 1 channel RCA |
| Audio Output | 1 channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Hard Disk | 2 SATA ports. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, Motion detection, Intelligent, Alarm |
| Playback Mode | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| Backup Method | USB device and network |
| Smart Phone | iOS, Android |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | ≤ 10 W (without HDD) |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Dimensions | 375.0 mm × 282.9 mm × 53.0 mm |
| Weight | 1490 g (without HDD) |
