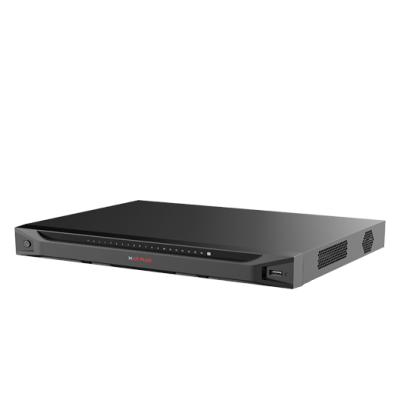

CP-UNR-4K4082-V4
Up to 8 Channel IP Camera input
Instastream, H.265, H.264, MJPEG
Up to 12 MP resolution preview and playback
AI disabled: 160 Mbps incoming, AI enabled: 80 Mbps incoming
Support 2 SATA HDDs up to 20TB, 2 USB ports(2.0)
HDMI / VGA simultaneous video output
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro Lite
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade processor |
| IP Camera Input | 8 channel |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| Perimeter Performance of AI by Camera | 6 channels |
| Video Output | Simultaneous :1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: 1 HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Abnormal Alarm | Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked and cybersecurity exception |
| Face Attributes | Gender, age group, glasses, expressions, face mask, beard |
| Face Recognition AI by Camera | 6 channels |
| Face Detection AI by Camera | 6 channels |
| Encode Strategy | Instastream, H.264+ |
| Resolution | 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 2 MP, 960p, 720p, D1, CIF, QCIF |
| Network Bandwidth | AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Decoding Capacity | AI disabled: 1 Channel 12 MP@30 fps, 2 Channel 8 MP@30 fps, 3 Channel 5 MP@30 fps, 4 Channel 4 MP@30 fps, 8 Channel 1080p@30 fps AI enabled: 1 Channel 12 MP@30 fps, 1 Channel 8 MP@30 fps, 2 Channel 5 MP@30 fps, 3 Channel 4 MP@30 fps, 7 Channel 1080p@30 fps |
| Video Display Split | Main screen: 1/4/8/9 Sub screen: 1/4/8/9 |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Video Compression | H.265, H.264 |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels (1-channel 12 V 1 A output） |
| Disk Group | Support |
| Record Mode | General, motion detection, intelligent, alarm |
| Smart Phone | iPhone, iPad, Android Phone |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Browser | Chrome, IE9 and later, Firefox, Edge |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Multi-channel Playback | Up to 8 channels |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK |
| Backup Method | USB device and network |
| Power Supply | 12 VDC, 4 A |
| Power Consumption | <10 W |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH) |
| Dimensions | 375.0mm × 282.9mm × 53.0mm |
| Weight | 1.49 kg |
