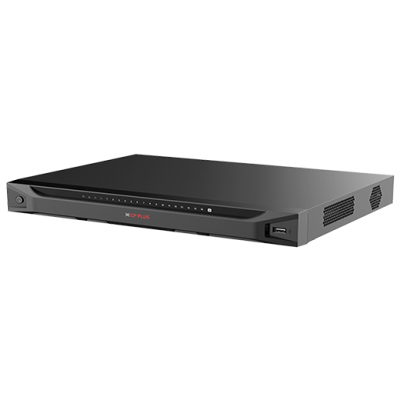

CP-UNR-4K4162-P16V4
Up to 16 channel IP camera input
Smart Instastream,H.265,Smart H.264+,H.264 and MJPEG decoding
Max. decoding capability: 8 × 1080p@30fps or 2 × 8MP@30fps.
Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth
2 SATA ports. Each disk can contain up to 20TB, 2 USB Ports
Supports IP cameras with a resolution up to 12MP
AI by NVR supports 4-channel SMD Plus
AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map
Supports EPTZ, and one-click arming and disarming
Support 16 PoE Ports
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade processor |
| IP Camera Input | 16 channel |
| Operating System | Embedded LINUX |
| Operation Interface | Web, Local GUI |
| AI by NVR | SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Perimeter Performance of AI by Camera (Number of Channels) | 6 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Camera (Number of Channels) | 6 channels |
| Face Recognition Performance of AI by Camera (Number of Channels) | 6 channels |
| SMD Plus by NVR | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 6 channels |
| Video Output | 1 HDMI, 1 VGA Simultaneous HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Compression | H.265; Smart H.264+; H.264 |
| Encode Strategy | Instastream |
| Network Bandwidth | AI disabled: 160Mbps incoming, 160Mbps recording and 80Mbps outgoing AI enabled: 80Mbps incoming, 80Mbps recording and 60Mbps outgoing |
| Resolution | 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4- channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1- channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30fps |
| Multi-screen Display | Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16 |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 Channel |
| Alarm Output | 2 channels (1-channel 12 V 1 A output) |
| Record Mode | General, motion detection; intelligent; alarm |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 2 SATA ports. Each disk can contain up to 20TB. This limit varies depending on the environment temperature. |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Disk Group | Support |
| Multi-channel Playback | Up to 16 channels |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Backup | USB device and network |
| Interface Ports | 2 USB ports (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 RS232 Port, 1 HDMI, 1 VGA Port |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE | 16 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; InstaOn cloud; Auto Registration; IP Search; ONVIF 22.12(Profile T; Profile S; Profile G); CGI; |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | Total output of NVR is <10 W (without HDD) Total output power of PoE is 130W,the maximum output power of a single port is 25.5W |
| Operating Temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Dimension | 375.0 mm × 327.9 mm × 53.0 mm (14.76 |
| Weight | 2.60kg |
