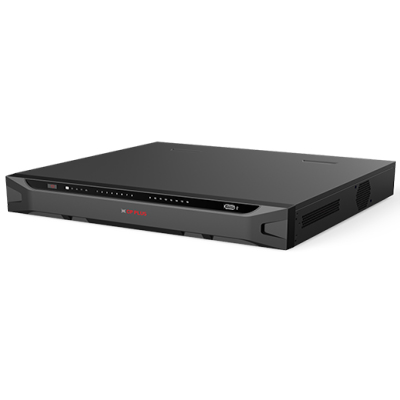

CP-UNR-4K4322-V4
- Up to 32 channel IP camera input
- Instastream, H.265, H.264 , H.264, MJPEG Decoding
- Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps
- Max. 160/128/60 Mbps Incoming/ Recording/ Outgoing Bandwidth
- Support 2 SATA HDDs up to 20TB Each, 2 USB Ports
- HDMI / VGA simultaneous video output
- AI by Camera: Face detection and recognition, Perimeter protection, SMD Plus, People counting, Stereo analysis and heat map
- Support Multi-brand network cameras
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro Lite
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 32 channel |
| User Interface | Web, Local GUI |
| AI by NVR | SMD Plus |
| Perimeter Performance of AI by Camera | 6 Channels |
| Video Output | 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Face Attributes | Gender, Age group, Glasses, Expressions, Face mask, Beard |
| Abnormality Alarm | Camera disconnection, Storage error, Disk full, IP conflict, MAC conflict, Login locked, Cybersecurity exceptio |
| SMD Plus by NVR | 2 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| Face Detection AI by Camera | 6 Channels |
| Resolution | 4 MP, 3 MP, 2MP, 960p, 720p, D1, CIF, QCIF |
| Video Compression | Instastream; H.265, H.264+, H.264 |
| Network Bandwidth | AI disabled: 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Smart Phone | iPhone, iPad, Android Phone |
| Disk Group | Support |
| Video Display Split | AI disabled: Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16 |
| Audio Input | 1 Channel RCA |
| Audio Output | 2 Channel RCA |
| Audio Compression | G.711a, G.711u, PCM, |
| Hard Disk | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperatur |
| Browser | Chrome, IE, Safari, Edge, Firefox |
| Multi-channel Playback | Up to 16 Channels |
| Playback | Instant playback, General playback, Event playback, Tag playback, Smart playback |
| Backup Mode | USB device and Network |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port), 1 HDMI, 1 VGA |
| Ethernet | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, InstaOn, Auto Registration, ONVIF 22.12(Profile T, Profile S, Profile G), CGI, SDK |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | Total output of NVR is <10 W(without HDD) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Dimensions | 375.0 mm × 282.9 mm × 53.0 mm |
| Weight | 1.49 kg |
