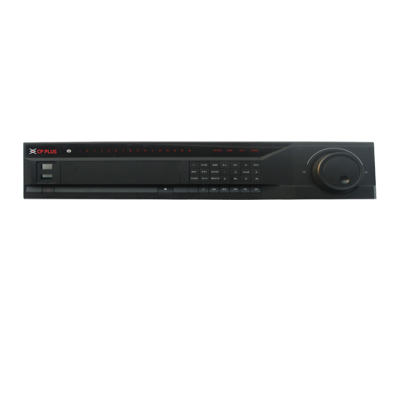

CP-UNR-4K516R8-V2
- Up to 16 channel IP camera input
- Max 320Mbps incoming bandwidth
- Instastream/H.265/Smart H.264+/H.264/MJPEG codec decoding
- Up to 12Mp resolution preview and playback
- Support 8 SATA HDDs up to 10TB Each, 4 USB Ports(2 USB3.0, 2USB2.0), 1 eSATA Port
- 2 HDMI / 2 VGA simultaneous video output
- Support Multi-brand network cameras
- Support RAID 0/1/5/10
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Quad-core embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 16 channel |
| Two-way Talk | 1 channel Input, 1 channel Output, RCA |
| User Interface | GUI |
| Video Output | 2 HDMI, 2 VGA |
| Video Resolution | HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 ; HDMI2/VGA2: 1920 × 1080 |
| Video Display Split | 1st Screen: 16CH: 1/4/8/9/16, 2nd Screen: 1/4/8/9/16 |
| Channel | 16 |
| Motion Detection | MD Zones: 396(22×18) |
| Video Loss | Supports |
| Alarm Input | 16 Channel |
| Alarm Output | 6 Channel |
| Smart Phone | iPhone, iPad, Android Phone |
| Bandwidth Incoming | 320Mbps |
| Hard Disk | 8 SATA III Ports, up to 10TB Each, 1 eSATA Port |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network/eSATA Device |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Max User Account | 128 users |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 2 RJ-45 port (10/100/1000Mbps) |
| Interface Ports | 4 USB Ports (2 Rear USB 3.0 , 2 Front USB 2.0 ) , 1 RS485, 1 RS232 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, ONVIF 2.4, SDK, CGI |
| Power Supply | Single, AC 100~240V, 50/60 Hz |
| Power Consumption | <16.7W (Without HDD) |
| Working Temp | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension | 440mm x 451.5mm x 94.9mm |
| Weight | 6.55kg (without HDD) |
