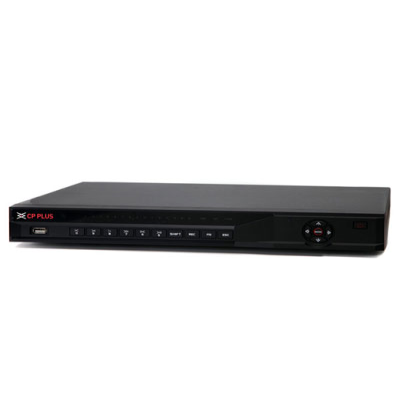

CP-UNR-4K5322-V2

CP-UNR-4K5322-V2

Rated 0 out of 5

0 Reviews

In stock

Up to 32 channel IP camera input
Max 320Mbps incoming bandwidth
Instastream/H.265/Smart H.264+/H.264/MJPEG codec decoding
Up to 12MP resolution preview and playback
Support 2 SATA HDDs up to 10TB Each, 2 USB Ports (1 USB 3.0)
HDMI/ VGA simultaneous video output
Support Multi-brand network cameras
ONVIF Version 2.4 conformance
Mobile Software: iCMOB, gCMOB

Estimated delivery time 14-30 days
18 months warranty at Genuine Warranty Center.
Whats in the box: charging cable and block

Product details

Processor	Quad-core embedded processor
Operating System	Embedded LINUX
Two-way Talk	1 Channel Input, 1 Channel Output, RCA
User Interface	GUI
Video Output	1 HDMI, 1 VGA
Video Resolution	HDMI1: 3840 × 2160, 1920 × 1080,1280 × 1024, 1280 × 720,1024 × 768, VGA1: 1920 × 1080, 1280 × 1024, 1280 × 720,1024 × 768, HDMI2/VGA2: 1920 × 1080
Video Compression	Instastream/H.265+/Smart H.264+/H.264/MJPEG
Video Recording	Max 320Mbps
Video Display Split	1/4/8/9/16/25/36
Channel	32 channel
Motion Detection	MD Zones: 396(22×18).
Video Loss	supports
Bandwidth Incoming	320Mbps
Alarm Input	4 Channel
Alarm Output	1 Channel
Smart Phone	iPhone, iPad, Android Phone
Hard Disk	2 SATA III Ports, up to 10TB Each
Search Mode	Time /Date, Alarm, MD and Exact Search (accurate to second)
Backup Mode	USB Device/Network
Playback	Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Max User Account	128 users
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Ethernet	1 RJ-45 Port (10/100/1000Mbps)
Interface Ports	2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ), 1 RS232, 1 RS485
Protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search , ONVIF 2.4, SDK, CGI
Power Supply	Single, DC12V/2A
Power Consumption	<9.5W (Without HDD)
Working Temp	-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension	375mm x 281.5mm x 56mm
Weight	1.6kg (without HDD)
