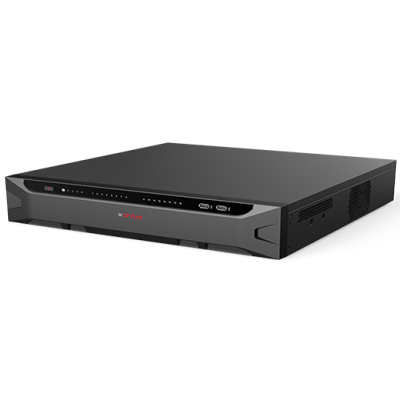

CP-UNR-4K5324-V3
- Up to 32 channel IP camera input
- AI Disabled: 2 Channel 16 MP@30 fps, AI enabled: 1 Channel 16 MP@30 fps
- AI disabled: 256 Mbps incoming, AI enabled: 180 Mbps incoming
- Instastream, H.265, H.264 , H.264, MJPEG Decoding
- Up to 16MP Video Resolution
- Support 4 SATA ports, up to 16TB, 2 USB (1 front USB 2.0 Port, 1 rear USB 3.0 Port)
- 1 HDMI, 1 VGA simultaneous video output
- Support ONVIF 22.06
- Support SMD Plus
- Mobile Software: iCMOB, gCMOB
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial-grade processor |
| IP Camera Input | 32 channels |
| Operating System | Embedded LINUX |
| User Interface | Web, Local GUI |
| AI by NVR | Face detection, Face recognition, Perimeter protection, SMD Plus |
| Perimeter Performance AI by NVR | 2 channels, 10 IVS rules for each channel |
| Face Detection AI by NVR | 1 channel (up to 12 face images/s each Channel) |
| Video Output | 1 HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; 1 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Face Recognition AI by NVR | 8-channel FD (by camera) + FR (by recorder), image Stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video Stream: 12 face images/s |
| Network Bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Encode Strategy | Instastream, H.264+ |
| Video Compression | H.265, H.264, MJPEG |
| ANPR by Camera (Number of Channels) | 6 Channels |
| Video Display Split | Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16 |
| Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6- channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4- channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps |
| Record Mode | General, Motion detection, Intelligent, Alarm |
| Resolution | 4 MP, 3 MP, 2MP, 960p, 720P, D1, CIF |
| Disk Group | Support |
| Hard Disk | 4 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature |
| Playback Mode | Instant playback, General playback, Event playback, Tag Playback, Smart layback |
| Multi-channel Playback | Up to 16 Channels |
| Interface Ports | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 HDMI, 1 VGA, 1 RS232, 1 RS485 |
| Ethernet | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| Protocols | HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); InstaOn ; auto register, ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Backup Method | USB device and network |
| Alarm Input | 16 channel |
| Alarm Output | 16 channels |
| Audio Compression | G.711a, G.711u, PCM, G726, AAC |
| Smart Phone | iPhone, iPad, Android Phone |
| Browser | Chrome, IE9 and later, Firefox |
| Power Supply | 100–240 VAC, 50-60Hz |
| Power Consumption | <10 W (without HDD) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Operating Humidity | 10%–93% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Dimensions | 440.0 mm × 415.6 mm x 76.0 mm |
| Weight | 4.25 kg |
