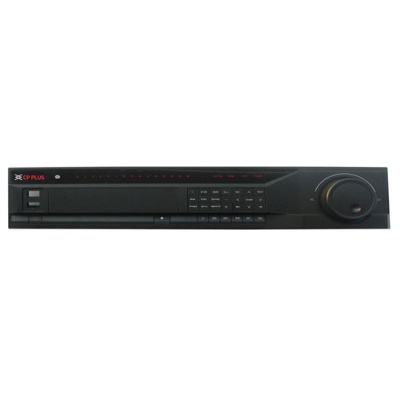

CP-UNR-4K6128R8-V2
- Up to 128 channel IP camera input
- Up to 12MP resolution preview and playback
- Max 384Mbps incoming bandwidth
- Support 8 SATA HDDs up to 10TB Each, 4 USB Ports (2 USB3.0), 1 eSATA port
- 2 HDMI / 1 VGA simultaneous video output
- Support Multi-brand network cameras
- Support RAID 0/1/5/10
- Smart Tracking and Intelligent Video
- ONVIF Version 2.4 conformance
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | 9kg (without HDD) |
| IP Camera Input | 128 channel |
| Operating System | Embedded LINUX |
| Two-way Talk | 1 channel Input, 1 channel Output, RCA |
| User Interface | GUI |
| Video Output | 2 HDMI (up to 3840× 2160), 1 VGA |
| Compression | H.265/ H.264/ MJPEG |
| Video Resolution | 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768 |
| Video Recording | 384Mbps |
| Video Display Split | The 1st screen: 1/4/8/9/16/25/36, The 2nd screen: 1/4/8/9/16 |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc. |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Motion Detection | MD Zones: 396(22×18). |
| Video Loss | Supports |
| Camera Blank | Supports |
| Alarm Input | 16ch, low level effective, green terminal interface |
| Alarm Output | 8ch, NO/NC programmable, green terminal interface |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 8 SATA III ports, up to 10TB Each, 1 eSATA port |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Tracking Trigger Event | Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc. |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| HDD Management | Single, Raid 0/1/5/10 (Support global HDD hot-spare) |
| Hot-Swap | Support |
| Recording Mode | Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop |
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) |
| Playback | 128Mbps in Raid 5 mode, 64Mbps in single HDD mode |
| Backup Mode | USB Device/Network/eSATA Device |
| Interface Ports | 4 USB ports(2 USB2.0, 2 USB3.0), 1 RS485, 1 RS232 |
| Max User Account | 128 users |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 2 RJ-45 port (10/100M/1000Mbps) |
| Protocols | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, ONVIF Version 2.4, CGI Conformant |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | <20W (Without HDD) |
| Working Temp | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension | 444mm x 457mm x 95mm |
| Weight | 9kg (without HDD) |
