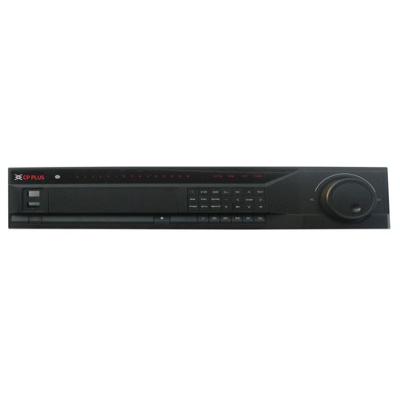

CP-UNR-4K664R8-EV2
- Up to 64 channel IP camera input
- Up to 12MP resolution preview and playback
- Max 384Mbps incoming bandwidth
- Support 8 SATA III ports, up to 16TB each, 4 USB(2 USB3.0), 1 eSATA port
- 2 HDMI / 1 VGA simultaneous video output
- Support Multi-brand network cameras
- Support RAID 0/1/5/6/10
- Redundant power supply module adopted
- ONVIF Version 2.4 conformance
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro
- Estimated delivery time 14-30 days
- 18 months warranty at Genuine Warranty Center.
- Whats in the box: charging cable and block
Product details
| Processor | Industrial embedded micro-processor |
| Operating System | Embedded LINUX |
| Channel | 64 channel |
| Two-way Talk | 1 channel Input, 1 channel Output, RCA |
| User Interface | GUI |
| Video Output | 2 HDMI (up to 3840 x 2160 , Different Source), 1 VGA |
| Video Resolution | 3840× 2160, 1920× 1080, 1280× 1024, 1280× 720, 1024× 768 |
| Video Recording | 384Mbps |
| Video Display Split | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
| AI Search | Search pictures by channel, time, event type |
| Camera Blank | Supports |
| Motion Detection | MD Zones: 396(22×18). |
| Vehicle | Plate No., type, color, vehicle type, logo, plate color, ornament, calling, seatbelt, region |
| Video Loss | supports |
| Human Body | Top, top color, bottom, bottom color, hat, bag, gender, age, umbrella |
| Alarm Input | 16 Ch |
| Face | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| Non-motor Vehicle | Type, color, number of passengers, helmet |
| Alarm Output | 8 Channel |
| Audio Compression | AAC/MP2/G726/G729/G722/G723/G711A/G711U/PCM |
| Smart Phone | iPhone, iPad, Android |
| Bandwidth Incoming | 384Mbps |
| Video Compression | H.265/Smart H.264+/H.264/MPEG4/MJPEG |
| Encode Strategy | Instastream |
| Hard Disk | 8 SATA III ports, up to 16TB Each, 1 eSATA port |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer, Screen Tips, Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc. |
| HDD Management | Single, Raid 0/1/5/6/10 |
| Recording Mode | Manual, Schedule (Regular, MD (Motion Detection),Alarm, IVS), Holiday, Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network/eSATA Device |
| Playback | 128Mbps in Raid 5 mode, 64Mbps in single HDD mode |
| Max User Account | 128 users |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30sec, Post-record: 10 ~ 300 sec |
| Ethernet | 2 RJ-45 Ports (10/100/1000Mbps) |
| Interface Ports | 4 USB ports(2 USB2.0, 2 USB3.0), 1 RS485, 1 RS232 |
| Protocols | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search, P2P, ONVIF (profile T/S/G), CGI, SDK |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz, Redundant |
| Power Consumption | <20W (Without HDD) |
| Working Temp | -10 ~+55°C / 10~90%RH / 86~106kpa |
| Dimension | 444mm x 457mm x 95mm |
| Weight | 9.7kg (without HDD) |
